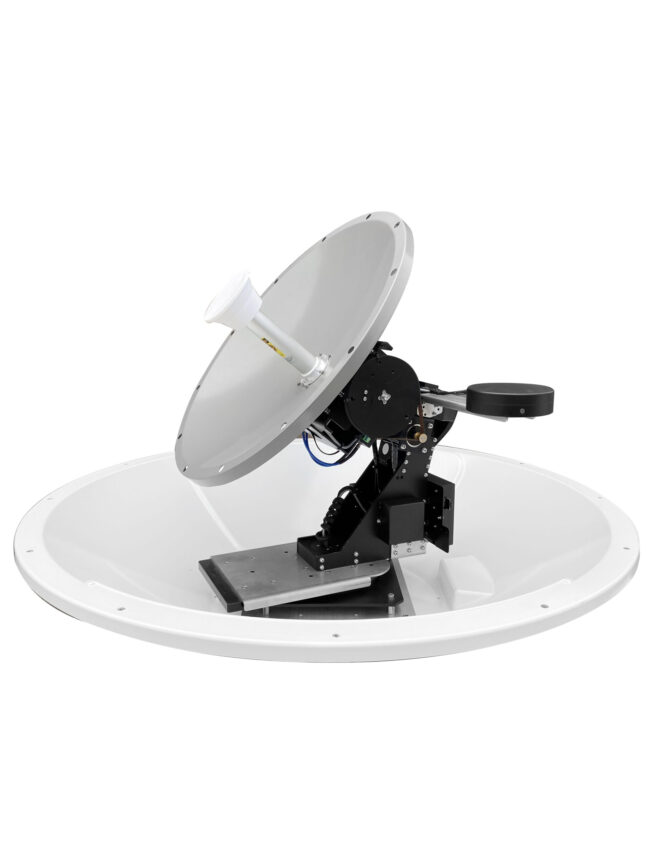

KM-M8

KM-M860cm Dish Diameter,High Gain Parabolic Antenna with 3-Axis mechanical design,Point to Point Tracking0212 565 10 22İletişime Ulaşın – Point to Point Tracking ,Remote to 50KM – Support Built-in Multi-point database ,GNSS pointing system – High Gain Parabolic Antenna ,Extented Frequency to 4.9-6.5Ghz – Broadband ,High speed ,Up to 400Mbps

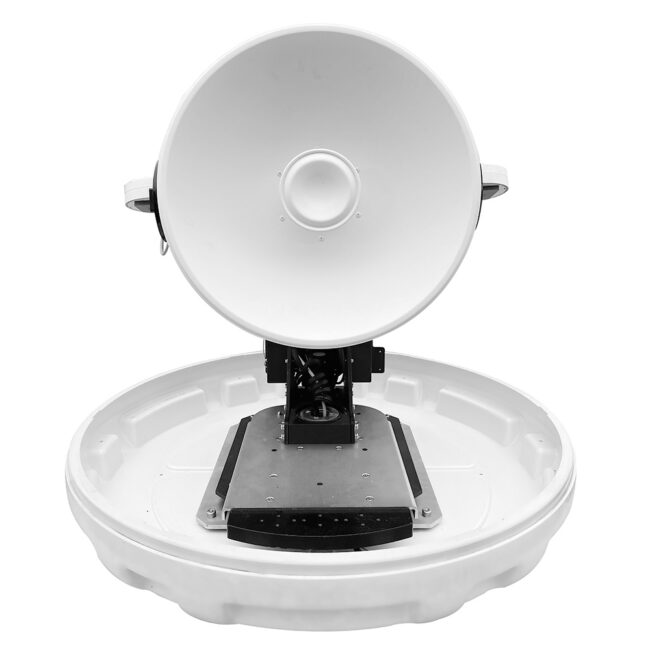

KM-M6

KM-M642cm Dish Diameter,High Gain Parabolic Antenna with 3-Axis mechanical design,Point to Point Tracking0212 565 10 22İletişime Ulaşın – Point to Point Tracking ,remote to 50KM – Support Built-in Multi-point database ,GNSS pointing system – High Gain Parabolic Antenna ,Extented Frequency to 4.9-6.5Ghz – Broadband ,High speed ,Up to 400Mbps

KM-Z6

KM-Z6All High Band Element Solution0212 565 10 22İletişime Ulaşın – High Band High Gain Up to 15db – Element beamwidth is 60° ,6 sides to fullfill 360° direction – Support Available Band Networks for 4G-LTE – Easy to Setup ,Use and Maintenance – Built-in 4G router ,Simple Design

KM-Z3

KM-Z3Combine Low Band and High Band Element Solution0212 565 10 22İletişime Ulaşın – Low Band High Gain Up to 10db – Element beamwidth is 90° ,4 sides to fullfill 360° direction – Support Available Band Networks for 4G-LTE – Easy to Setup ,Use and Maintenance – Built-in 4G router ,Simple Design

KM-V4

KM-V445cm Dish Diameter,2 Axis Stabilized and 3-Axis Tracking0212 565 10 22İletişime Ulaşın -2-Axis Stabilized & 3-Axis Automatic Skew Adjustment -Powerful Signal Receiving Performance -Fast Satellite Searching and Positioning -Excellent Anti-Heavy Sea Tracking Ability by Proprietary Algorithm -Easy to change target satellite by Editable Satellite Data Library -Builtin GNSS Module -Free External Gyro for Searching Satellite

KM-V6

KM-V660cm Dish Diameter,2 Axis Stabilized and 3-Axis Tracking0212 565 10 22İletişime Ulaşın -2-Axis Stabilized & 3-Axis Automatic Skew Adjustment -Powerful Signal Receiving Performance -Fast Satellite Searching and Positioning -Excellent Anti-Heavy Sea Tracking Ability by Proprietary Algorithm -Easy to change target satellite by Editable Satellite Data Library -Builtin GNSS Module -Free External Gyro for Searching Satellite

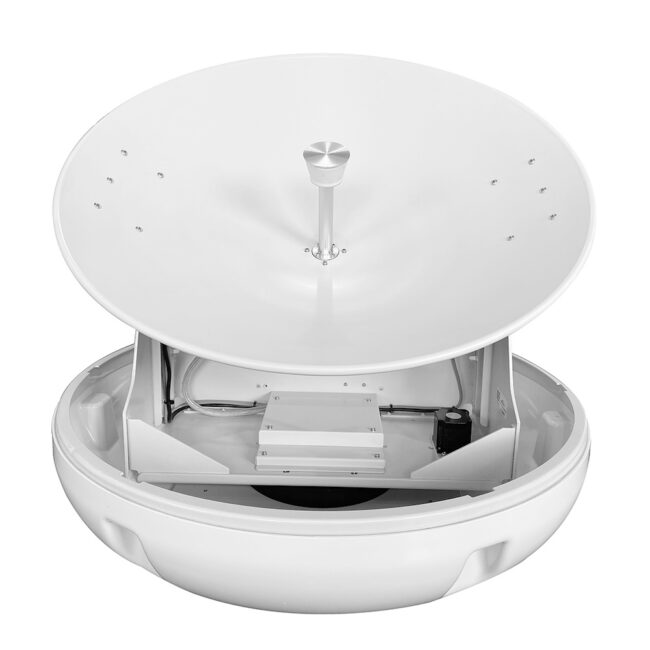

KM-V7

KM-V775cm Dish Diameter,2 Axis Stabilized and 3-Axis Tracking0212 565 10 22İletişime Ulaşın -2-Axis Stabilized & 3-Axis Automatic Skew Adjustment -Powerful Signal Receiving Performance -Fast Satellite Searching and Positioning -Excellent Anti-Heavy Sea Tracking Ability by Proprietary Algorithm -Easy to change target satellite by Editable Satellite Data Library -Builtin GNSS Module -Free External Gyro for Searching Satellite

KM-X6

KM-X664cm Dish Diameter,3 Axis Stabilized and 4-Axis Tracking0212 565 10 22İletişime Ulaşın -3-Axis Stabilized & 4-Axis Automatic Skew Adjustment -Powerful Signal Receiving Performance -Fast Satellite Searching and Positioning -Excellent Anti-Heavy Sea Tracking Ability by Proprietary Algorithm -Easy to change target satellite by Editable Satellite Data Library -Builtin GNSS Module -Free External Gyro for Searching Satellite

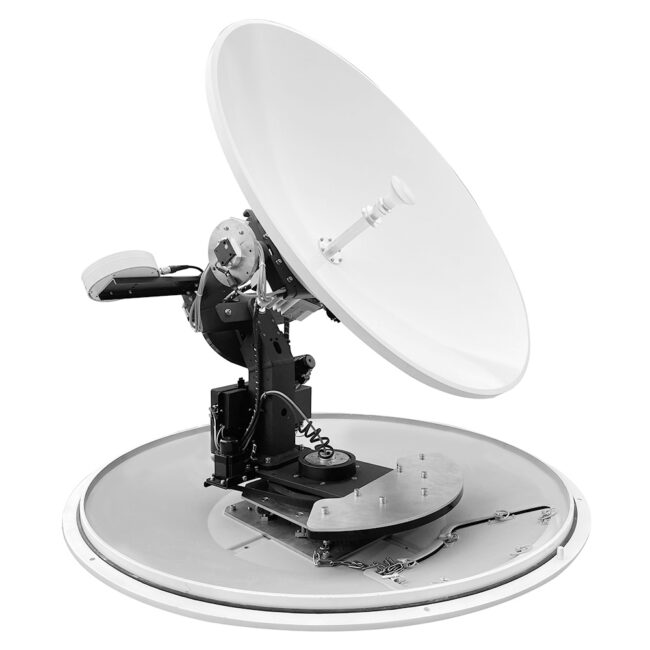

KM-X8

KM-X885cm Dish Diameter,3 Axis Stabilized and 4-Axis Tracking0212 565 10 22İletişime Ulaşın -3-Axis Stabilized & 4-Axis Automatic Skew Adjustment -Powerful Signal Receiving Performance -Fast Satellite Searching and Positioning -Excellent Anti-Heavy Sea Tracking Ability by Proprietary Algorithm -Easy to change target satellite by Editable Satellite Data Library -Builtin GNSS Module -Free External Gyro for Searching Satellite

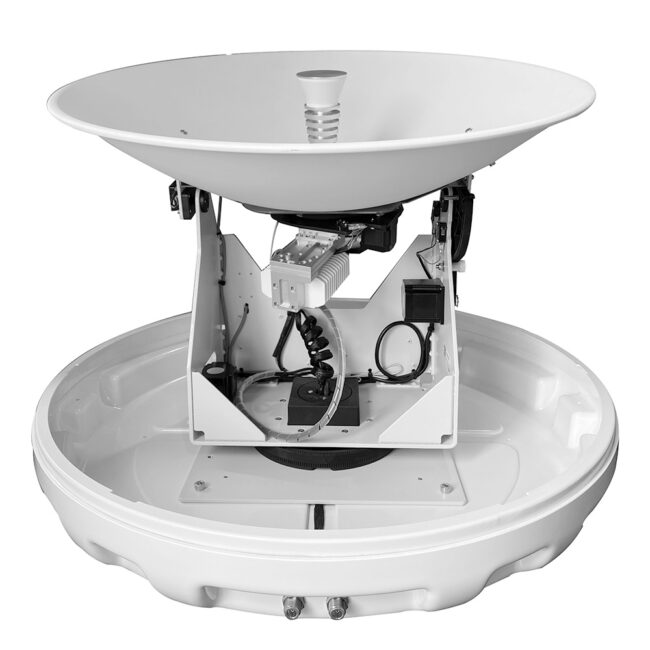

KM-P6A

KM-P6ABasic Model ,64cm Dish Diameter,Ku Band0212 565 10 22İletişime Ulaşın – 2-Axis stabilized and 3-Axis tracking – Azimuth 0-690° – Free GPS Gyro – Support Webpage Interface Function – Step Motor – ASA Radome(Loss<0.8dB)

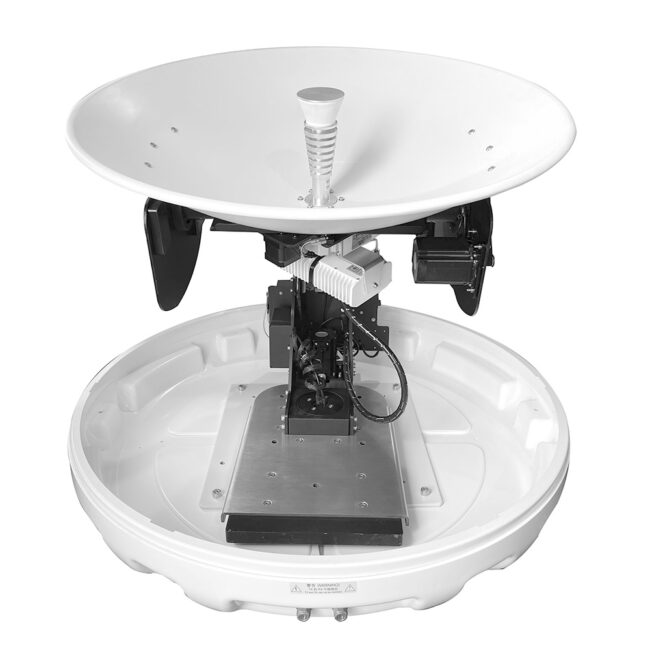

KM-P6

KM-P6Standard Model ,64cm Dish Diameter,Ku Band0212 565 10 22İletişime Ulaşın – 3-Axis stabilized and 4-Axis tracking – Azimuth 0-690° – Free GPS Gyro – Support Webpage Interface Function – Step Motor – ASA Radome(Loss<0.8dB)

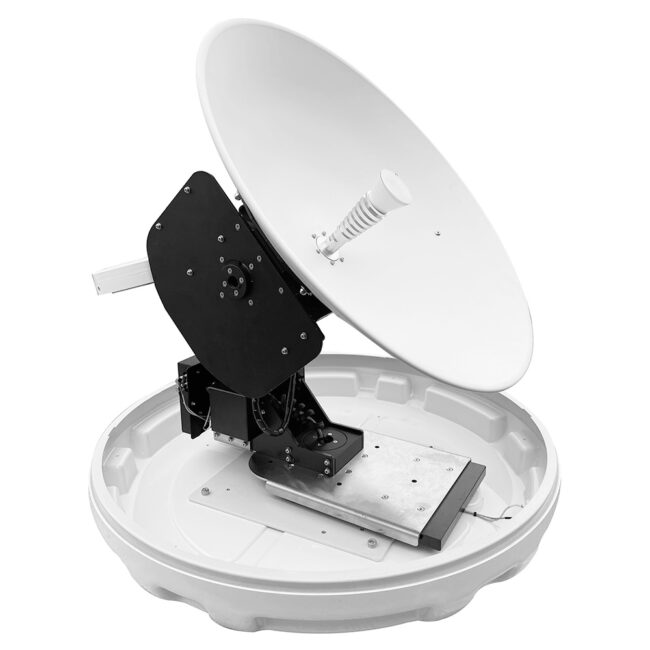

KM-P6E

KM-P6EEnhanced Model ,64cm Dish Diameter,Ku band0212 565 10 22İletişime Ulaşın – 3-Axis stabilized and 4-Axis tracking – Azimuth 0-690° – Builtin Dual GPS Gyro – Support Webpage Interface Function – Step Motor – ASA Radome(Loss<0.8dB)

KM-P8

KM-P8Standard Model ,85cm Dish Diameter,Ku Band0212 565 10 22İletişime Ulaşın – 3-Axis stabilized and 4-Axis tracking – Azimuth 0-690° – Free GPS Gyro – Support Webpage Interface Function – DC Motor with Brake – Support S2/ACM Demodulator – ASA Radome(Loss<0.8dB)

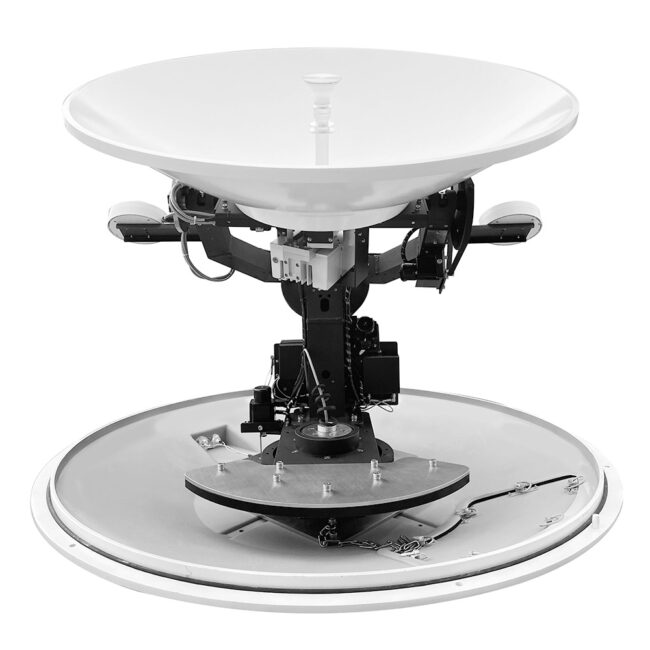

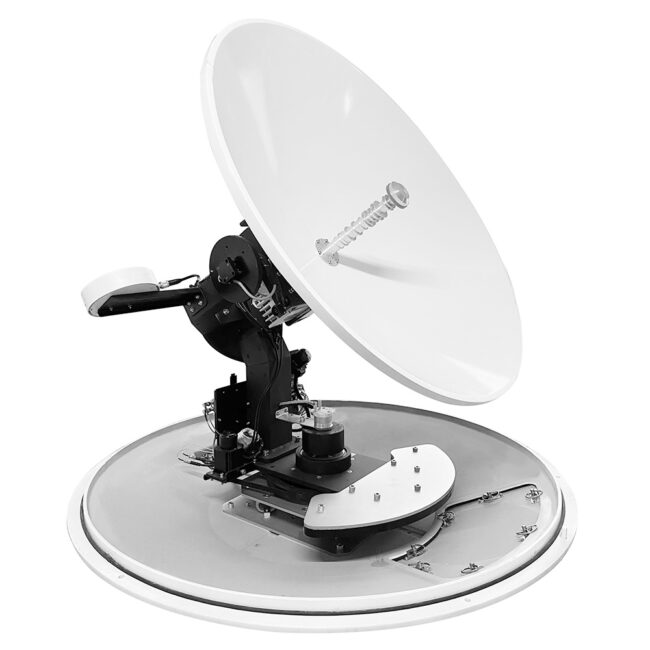

KM-P8E

KM-P8EEnhanced Model ,85cm Dish Diameter,Ku Band0212 565 10 22İletişime Ulaşın – 3-Axis stabilized and 4-Axis tracking – Azimuth 0-690° – Builtin Dual GPS Gyro – Support Webpage Interface Function – DC Motor with Brake – Support S2/ACM Demodulator – ASA Radome(Loss<0.8dB)

KM-P8+E

KM-P8+EUltimate Model ,85cm Dish Diameter,Ku Band0212 565 10 22İletişime Ulaşın – 3-Axis stabilized and 4-Axis tracking – Azimuth unlimited – Builtin Dual GPS Gyro – Support Webpage Interface Function – DC Motor with Brake – Support S2/ACM Demodulator – Honey Comb Radome(Loss<0.2dB)

4G EZ-60

4G  EZ-60 Radome Size: 78X80cm(31″x31.5″) Frequency: 1710-2700MHZ Antenna Gain: ≥6dBi@Hight Band ,≥10dBi@Low Band Antenna Type: 4G cluster omnidirectional antenna Beamwidth: H:360°(omni-Direction) ,E:≥12°±2 Polarization: ±45° Waterproof: IP65

3-Axis KM-X6

3-Axis KM-X6 Dish Diameter: 64CM(25”) MinimumEIRP: 46dBW Reception Frequency: Ku-Band(10.7~12.75GHZ) Polarization: Linear or Circular Elevation Range: 0~90° Azimuth Range: 690° Tracking Rate: >90°/sec Initialization: < 20sec Ship’s motion: Roll±25°,Pitch±15°,Yaw±8°@6sec period RF Output: 2/4 Temp Range: -30°C~70°C Humidity Range: 0~95% Waterproof: IP56

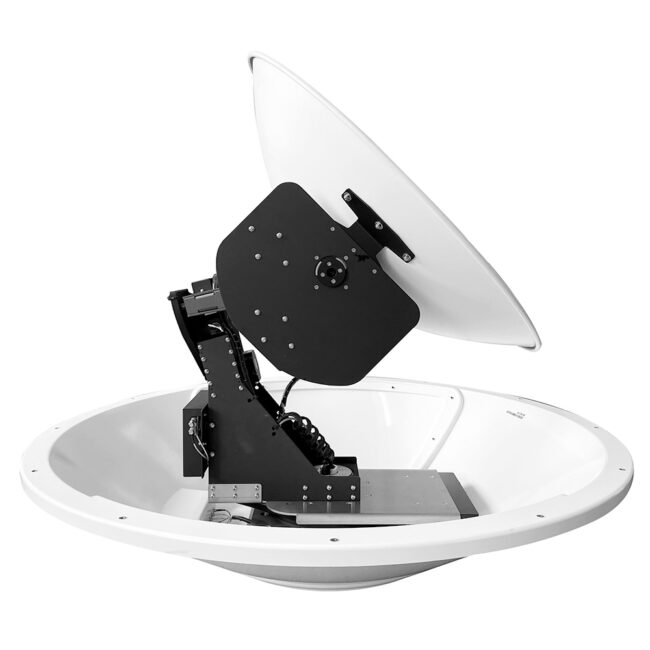

3-Axis KM-X8

3-Axis KM-X8 Dish Diameter: 85cm(33.5”) MinimumEIRP: 43dBW Reception Frequency: Ku-Band(10.7~12.75GHZ) Polarization: Linear or Circular Elevation Range: 0~90° Azimuth Range: 690° Tracking Rate: >90°/sec Initialization: < 20sec Ship’s motion: Roll±25°,Pitch±15°,Yaw±8°@6sec period RF Output: 2/4 Temp Range: -30°C~70°C Humidity Range: 0~95% Waterproof: IP56

2-Axis KM-V3L

2-Axis KM-V3L Dish Diameter:  40.4X15.3CM MinimumEIRP:  50dBW Reception Frequency:  Ku-Band(10.7~12.75GHZ) Polarization:  Linear or Circular Elevation Range:  0~90° Azimuth Range:  690° Tracking Rate:  >90°/sec / Azimuth:60°/s Elevation:60°/s Polarization:60°/s Initialization:  < 20sec Ship’s motion:  Roll±25°,Pitch±15°,Yaw±8°@6sec period RF Output:  2/4 Temp Range:  -30°C~70°C Humidity Range:  0~95% Waterproof:  IP56

2-Axis KM-V7

2-Axis KM-V7 Dish Diameter: 75cm(30″) MinimumEIRP: 44dBW Reception Frequency: Ku-band(10.7~12.75GHZ) Polarization:  Linear or Circular Elevation Range: 0~90° Azimuth Range: 690° Tracking Rate: >90°/sec Initialization: < 20sec Ship’s motion:  Roll±25°,Pitch±15°,Yaw±8°@6sec period RF Output: 2/4 Temp Range: -30°C~70°C Humidity Range: 0~95% Waterproof: IP56

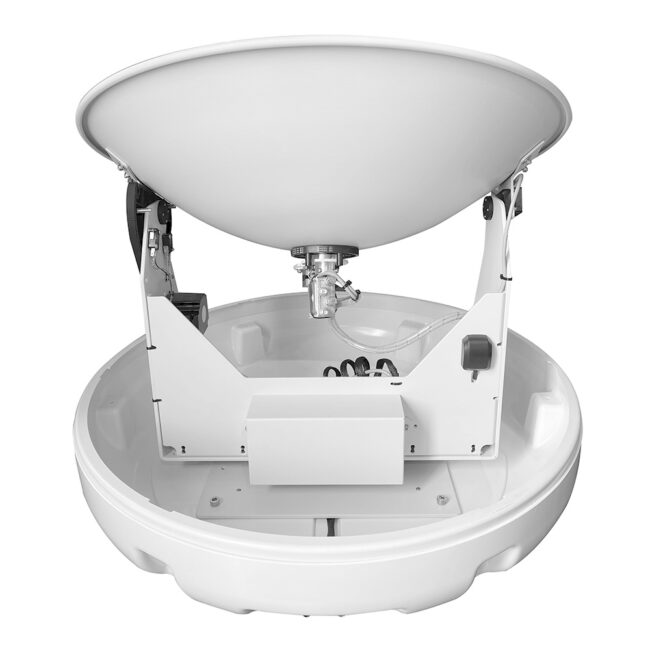

2-Axis KM-V6

2-Axis KM-V6 Dish Diameter: 60cm(24″) MinimumEIRP: 46dBW/47dBW Reception Frequency: Ku-Band(10.7~12.75GHZ) Polarization: Linear or Circular Elevation Range: 0~90° Azimuth Range: 690° Tracking Rate: >90°/sec Initialization: < 20sec Ship’s motion: Roll±25°,Pitch±15°,Yaw±8°@6sec period RF Output: 2/4 Temp Range: -30°C~70°C Humidity Range: 0~95% Waterproof: IP56

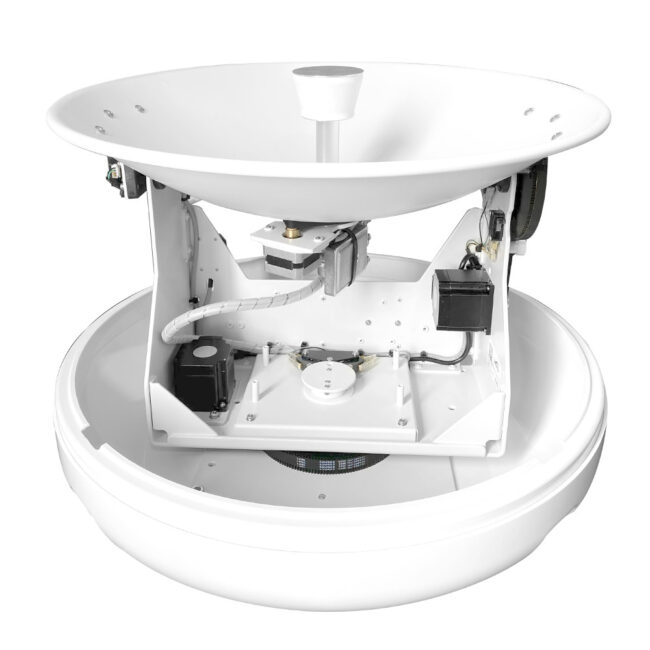

2-Axis KM-V4

2-Axis KM-V4 Dish Diameter:  45cm(18″) MinimumEIRP:  48dBW Reception Frequency:  Ku-Band(10.7~12.75GHZ) Polarization:  Linear or Circular Elevation Range:  0~90° Azimuth Range:  690° Tracking Rate:  >90°/sec / Azimuth:60°/s Elevation:60°/s Polarization:60°/s Initialization:  < 20sec Ship’s motion:  Roll±25°,Pitch±15°,Yaw±8°@6sec period RF Output:  2/4 Temp Range:  -30°C~70°C Humidity Range:  0~95% Waterproof:  IP56

2-Axis KM-V3

Dish Diameter:  33cm(13″) MinimumEIRP:  50dBW Reception Frequency:  Ku-band(10.7~12.75GHZ) Polarization:  Linear or Circular Elevation Range:  0~90° Azimuth Range:  690° Tracking Rate:  >90°/sec / Azimuth:60°/s Elevation:60°/s Polarization:60°/s Initialization:  < 20sec Ship’s motion:  Roll±25°/,Pitch±15°,Yaw±8°@6sec period RF Output:  2 Temp Range:  -30°C~70°C Humidity Range:  0~95% Waterproof:  IP56

2-Axis KM-P6A

2-Axis KM-P6A Dish Diameter: 64cm(25”) Frequency: TX:13.75~14.5GHz RX:10.7~12.75GHz Antenna Gain: TX:37.2dBi@14.25GHz RX:36dBi@12.5GHz G/T: 15.0dB/K(Clear Sky,30°Elevation) Ship’s motion: Roll:±20°@8~12sec,Pitch:|±10°|@6~12sec,Yaw:±8°@15~20sec Stabilization System: 2-Axis Skew Control: Automatic,0° to 240° Elevation Range: 0°~95° Azimuth Range: 0° to 690° Cross Level Range: BUC Power: 6W(3W/4W option) Waterproof: IP56

3-Axis KM-P8

3-Axis KM-P8 Dish Diameter: 85cm(33.5”) Frequency: TX:13.75~14.5GHz RX:10.7~12.75GHz Antenna Gain: TX:39.1dBi@14.25GHz RX:37.9dBi@12.5GHz G/T: 16.5dB/K(Clear Sky,30°Elevation) Ship’s motion: Roll:±20°@8~12sec,Pitch:|±10°|@6~12sec,Yaw:±8°@15~20sec Stabilization System: 3-Axis Skew Control: Automatic,0° to 240° Elevation Range: -15°~120° Azimuth Range: Unlimited Cross Level Range:-30°~30° BUC Power: 8W(4W/6W/8W/16W option) Waterproof: IP56

3-Axis KM-P6

3-Axis KM-P6 Dish Diameter: 64cm(25″) Frequency: TX:13.75~14.5GHz RX:10.7~12.75GHz Antenna Gain: TX:37.2dBi@14.25GHz RX:36dBi@12.5GHz G/T: 15dB/K@Clear Sky30°Elevation Ship’s motion: Roll:±20°@8~12sec,Pitch:|±10°|@6~12sec,Yaw:±8°@15~20sec Stabilization System: 3-Axis(AZ,EL,CL) + Auto skew Skew Control: Automatic,0° to 240° Elevation Range: -10°~115° Azimuth Range: 0° to 690°/Unlimited Cross Level Range: -30°~30° BUC Power: 6W(4W/8W option) Waterproof: IP56
