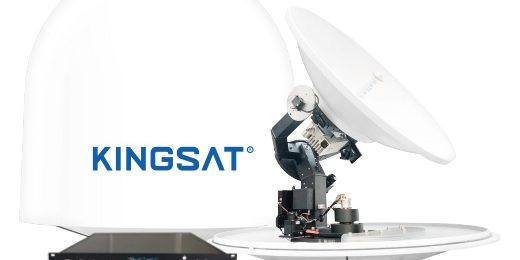

3-Axis KM-P8
Dish Diameter: 85cm(33.5”)
Frequency: TX:13.75~14.5GHz RX:10.7~12.75GHz
Antenna Gain: TX:39.1dBi@14.25GHz RX:37.9dBi@12.5GHz
G/T: 16.5dB/K(Clear Sky,30°Elevation)
Ship’s motion: Roll:±20°@8~12sec,Pitch:|±10°|@6~12sec,Yaw:±8°@15~20sec
Stabilization System: 3-Axis
Skew Control: Automatic,0° to 240°
Elevation Range: -15°~120°
Azimuth Range: Unlimited
Cross Level Range:-30°~30°
BUC Power: 8W(4W/6W/8W/16W option)
Waterproof: IP56
