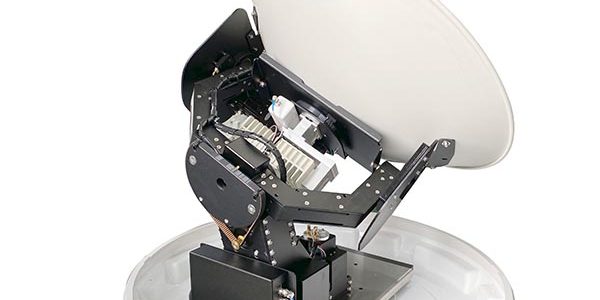

3-Axis KM-P6
Dish Diameter: 64cm(25″)
Frequency: TX:13.75~14.5GHz RX:10.7~12.75GHz
Antenna Gain: TX:37.2dBi@14.25GHz RX:36dBi@12.5GHz
G/T: 15dB/K@Clear Sky30°Elevation
Ship’s motion: Roll:±20°@8~12sec,Pitch:|±10°|@6~12sec,Yaw:±8°@15~20sec
Stabilization System: 3-Axis(AZ,EL,CL) + Auto skew
Skew Control: Automatic,0° to 240°
Elevation Range: -10°~115°
Azimuth Range: 0° to 690°/Unlimited
Cross Level Range: -30°~30°
BUC Power: 6W(4W/8W option)
Waterproof: IP56
