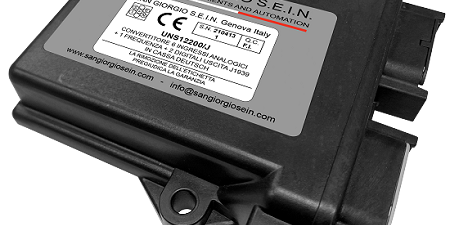

Converter equipped with six analog inputs, one frequency, two digital and one CAN Bus J1939 output. Can be used to acquire and convert analog signals from different measure sensors to J1939 or NMEA2000 compatible protocols.






133 x 118 x 35 mm

2 x Deutsch DTM06

12/24V

1 x Engine RPM W
1 x Water temperature 280-22 ohm
1 x Oil pressure 10-180 ohm
1 x Oil pressure inverter 10-180ohm
1 x Fuel level 10-180 ohm
1 x Battery voltage

1 x Alternator charger
1 x Low oil pressure
1 x High water temperature

CAN Bus J1939

-20 +70°C

IP65
