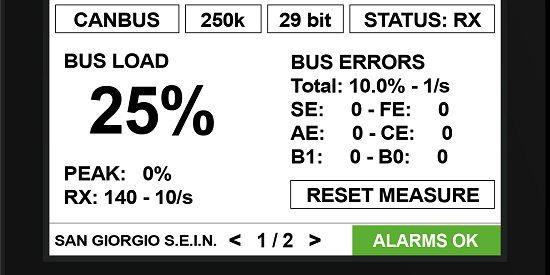

CAN Bus network analyzer with 4,3” resistive touch screen display. It measures several parameters for the verification of the connection quality.
118 x 78 x 32 mm
107 x 67 mm
4,3” color TFT LCD, high brightness 700cd
480 x 272 pixel
Resistive
4 x Analog inputs 0-300Ω / Outputs (PNP)
3 x Analog inputs 0-32V / Outputs (PNP)
1 x Frequency input W alternator / pickup
1 x Analog input 0-3V / TA Current
2 x Digital Outputs (PNP)
3 x Analog inputs 0-32V / Outputs (PNP)
1 x Frequency input W alternator / pickup
1 x Analog input 0-3V / TA Current
2 x Digital Outputs (PNP)
12/24V
-20 +70 °C
IP64
200g
