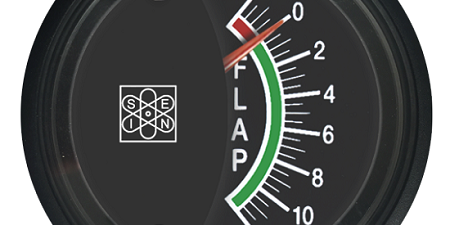

Flap angle gauges right -2/+12° input transmitter VSG40045 white backlighting

Range

-2/+12°

Case diameter

Ø 52 mm

Mounting hole & system

Ø53. Mounting brackets

Depth

52 mm

Input

Transmitter VSG40045

RQ series cover lens

Double lens anti-fog chamber

CR series cover lens

Glass

Illumination

White

Housing

Nylon PA66

Connection

Fast-on

Power supply

12 VDC 24VDC

Power consumption

150 mA max + backlighting

Operating temperature

-10 +70° C

Protection

IP67 on the front

Electromagnetic compatibility

IEC60945

Vibration and shock resistance

IEC60945
