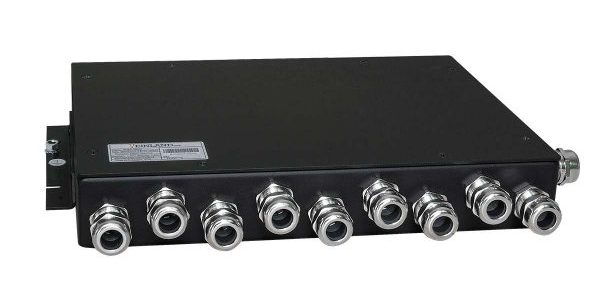

N0580-8NMEAto8-E-Multiplexer-front-600×600

  • 8 NMEA 0183 interfaces (inputs and outputs) IEC 61162 Ed.1-4
  • NMEA 0183 ports can be switched as input and output; thus 16 ports
  • Multiplexer and buffer / distributor / converter in one device
  • Automatic bidirectional conversion between IEC 61162 Ed1-4 and the new Ethernet standard IEC 61162-450
  • Automatic grouping (multisentence messages)
  • Tagblock configuration; data logging
  • Configuration for proprietary multisentence messages possible
  • Optional real time – time Server (NTP); time synchronization with GPS time
  • Bidirectional conversion to UDP / TCP-IP / Multicast
  • Cluster capability (several devices in a network); reduced cabling and installation costs
  • In a cluster, all NMEA inputs are available at each device
  • Fully configurable with included PC software
  • Inputs and outputs are galvanically and optically isolated
  • Intelligent data management prevents data errors
  • Data filter dynamically adjustable for high performance
