SKU: 000-14491-001 Stay safe and in touch with this dependable Class D DSC approved VHF radio featuring an integrated GPS receiver. The versatile RS20S is ideal for a variety of boats from small RIBs to larger cruisers, and is designed to match the low-profile style of our glass bridge displays and accessories. Key Features High-visibility…
SKU: 000-14470-001 Stay safe and connected with this VHF marine radio featuring a sleek design with removable fist mic, Class D DSC functionality, and built-in GPS. Keep track of nearby AIS-equipped vessels with an integrated AIS receiver, and add up to two optional wireless handsets to communicate clearly from anywhere on board. Key Features Class…
SKU: 000-14125-001 The Simrad® I3005 and I3007 Instrument Series offers a 5- or 7-inch superior colour display with easy touch control, a variety of graphic layouts with the capability to enable up to eight different functions simultaneously. Offering a flexible installation that supports a wide variety of I/O signal types, both display sizes are approved…
SKU: 000-14126-001 The Simrad® I3005 and I3007 Instrument Series offers a 5- or 7-inch superior colour display with easy touch control, a variety of graphic layouts with the capability to enable up to eight different functions simultaneously. Offering a flexible installation that supports a wide variety of I/O signal types, both display sizes are approved…
SKU: 000-14047-001 The SAL R1a is an IMO type-approved speed log for measuring longitudinal speed through water (STW), based on proven Acoustic Correlation technology. The speed log is designed to meet requirements as specified by authorities and ship owners, with performance exceeding applicable IMO specifications. Its closed-ended installation is simple and cost-effective, with no need…
SKU: 000-13612-001 Save the hassle of installing a costly second antenna and use your existing single antenna with VHF/AIS/FM, by enlisting the lightweight, compact NSPL 500 antenna splitter. When combined with the NAIS 500 AIS system, you can see and be seen on the water, whether tackling busy shipping lanes or crowded ports. Key Features…
SKU: 000-13611-001 Reduce your risk of collision with this fully integrated, Class-B AIS transponder – essential for navigating today’s busy shipping lanes and congested ports. Compact in size, lightweight, fully waterproof, with low power draw and featuring multiple connections, the NAIS 500 is ideal for networking with any NSS, NSO, or GO series chartplotter /…
SKU: 000-14380-001 The V3100 Class B AIS is designed to meet the needs of light commercial vessels and workboats operating in high-traffic areas. SOTDMA technology and increased transmission power enhance transmission frequency, reliability, and range compared to standard Class B AIS. This ‘black-box’ solution integrates with Simrad displays, and features industry-standard connectivity. Key Features Enhanced…
SKU: 000-12249-001 The Simrad V5035 is a fully featured Class-A AIS transponder system, IMO type approved for use aboard SOLAS vessels. As a standalone solution with integrated display and included GPS antenna, junction box, and pilot plug assembly, the V5035 cost-effectively delivers a complete solution requiring only a VHF antenna to be procured separately. The…
SKU: 000-15035-001 GC80/GC85 Double System Controller Unit. Key Features For DNV Nautical Safety requirements Switch-over automatic or manual GNSS and SDME input for gyro speed error correction Prerequisite: Two independent GC80/GC85 systems Remote heading source selection AMS, BAM
SKU: 000-15567-001 Fully IMO approved for standard and High Speed Craft (GC85) and can be configured in a dual gyrocompass system. The highest possible accuracy and stability is provided from new technology, by sophisticated and fully sealed sensitive element.
SKU: 000-15568-001 Fully IMO approved for standard craft and can be configured in a dual or triple gyrocompass system. The highest possible accuracy and stability is provided from new technology, by a sophisticated and fully sealed sensitive element.
SKU: 000-15570-001 The unique technology in the GC85 gyrocompass eliminates the need for annual service. The highest possible accuracy and stability is provided by a sophisticated and fully sealed sensitive element.
SKU: 000-15569-001 Fully IMO approved for standard craft, configured in a dual gyrocompass system with changeover switch. The highest possible accuracy and stability is provided from new technology, by a sophisticated and fully sealed sensitive element.
SKU: 000-14129-001 The Simrad® P2005 GPS System Series offers a 5-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of…
SKU: 000-11137-001 The Simrad GS70 is an IMO compliant GPS smart antenna that integrates with the Simrad GN70, MX610 or MX612 navigation system via NMEA 2000 to provide accurate position information at a user-selectable update rate Key Features Easy to install with NMEA 2000 interface Receives DGPS corrections from SBAS (WAAS, EGNOS, MSAS) satellites Receives…
SKU: 000-12308-001 The HS60 GPS compass delivers accurate heading and position data for use with Simrad chartplotters, autopilots, radar, and AIS. Ideal for applications where precise heading data is essential, such as autopilot systems, the HS60 provides an all-in-one alternative to a separate compass and GPS receiver. Key Features Simplicity of a compass and GPS…
SKU: 000-11641-001 The MX521B is a precision GNSS (Global Navigation Satellite System) GPS positioning solution in a smart antenna. Key Features IMO compliant GPS sensor with GLONASS (SIMRAD CDU is required to comply as an IMO approved system) Enhanced position performance with GLONASS Flexibility for easy integration into NMEA 0183 interface RAIM (Receiver Autonomous Integrity…
SKU: 000-14128-001 The Simrad® P3007 GPS System offers a 7-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O…
SKU: 000-14130-001 The Simrad® P3007 GPS System offers a 7-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O…
SKU: 000-11640-001 The MX521B is a precision D/GNSS (Global Navigation Satellite System) D/GPS positioning solution in a smart antenna. Key Features IMO compliant GPS/DGPS sensor with GLONASS (SIMRAD CDU is required to comply as an IMO approved system) Enhanced position performance with GLONASS Flexibility for easy integration into NMEA 0183 interface RAIM (Receiver Autonomous Integrity…
SKU: 000-15585-001 The multi-GNSS HS75 supports GPS, GLONASS, BeiDou, Galileo, and QZSS for pinpoint global positioning and heading accuracy. The HS75 offers a powerful combination of simple installation, small form factor, and high performance. The compass – measuring only 35 cm in length – mounts easily to a flat surface or pole. Key Features Supports…
SKU: 000-14135-001 The Simrad® P3007 GPS System offers a 7-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O…
SKU: 000-11643-001 The Simrad HS80A GNSS (Global Navigation Satellite System) compass is designed to provide reliable heading, ROT and position information to Simrad Autopilots and the MX Series of navigation and AIS transponder systems. Key Features IMO Type-Approved as a primary positioning AND heading device when used with SIMRAD CDU Compatible with new MX610/MX612/GN70 CDU’s…
SKU: 000-11644-001 The Simrad MX575D D/GNSS (Global Navigation Satellite System) compass is designed to provide reliable heading, ROT and position information to Simrad Autopilots and the MX Series of navigation and AIS transponder systems. The MX575D compass has enhanced heading and position performance with a GPS and GLONASS sensor. Key Features IMO Type-Approved as a…
SKU: 000-14132-001 The Simrad® P3007 GPS System offers a 7-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O…
SKU: 000-14136-001 The Simrad® P3007 GPS System offers a 7-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O…
SKU: 000-14131-001 The Simrad® P3007 GPS System offers a 7-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O…
SKU: 000-14134-001 The Simrad® P3007 GPS System offers a 7-inch superior colour display with easy touch control, position data accuracy, and reliability while enabling distribution of position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS, and the autopilot. Offering a flexible installation by supporting a wide variety of I/O…
SKU: 000-12552-001 IMO approved ECDIS with integrated chart management, route optimisation, radar overlay, and optional conning display. Features a 19-inch flat panel display with integrated Windows PC.
SKU: 000-12528-001 The Simrad MARIS ECDIS900 MK15 is an IMO type approved navigation system, designed for use aboard SOLAS vessels subject to ECDIS carriage mandates such as merchant cargo ships and tankers. Easy to use with integrated 24-inch flat panel display and a standard Windows PC interface, the ECDIS900 delivers precise navigation with comprehensive route…
SKU: 000-12553-002 The Simrad MARIS ECDIS900 MK5 is an IMO-type approved navigation system, designed for use aboard SOLAS vessels subject to ECDIS carriage mandates such as merchant cargo ships and tankers. Key Features Type approved ECDIS navigation system to meet IMO standards. Powerful Windows based PC with 24 or 26” wide screens Easy to use…
SKU: 000-13708-002 Simrad ECDIS900 MK5A is an IMO-type approved navigation system, designed for use aboard SOLAS vessels subject to ECDIS carriage mandates such as merchant cargo ships and tankers. Easy to use with a standard Windows PC interface, the ECDIS900 delivers precise navigation with comprehensive route planning and optimisation tools, integrated chart management and ordering,…
SKU: 000-14106-001
SKU: 000-12554-001 IMO approved dual-station PLECDIS with integrated chart management, route optimisation, radar overlay, and optional conning display. Features dual 24-inch flat panel displays with integrated Windows PCs.
SKU: 000-12557-002 The Simrad MARIS ECDIS 900 MK5A is an IMO-type approved navigation system, designed for use aboard SOLAS vessels subject to ECDIS carriage mandates such as merchant cargo ships and tankers. Key Features Type approved ECDIS navigation system to meet IMO standards. Powerful Windows based PC with 24 or 27” wide screens Easy to…
SKU: 000-13709-002 The Simrad MARIS ECDIS 900 MK5A is an IMO-type approved navigation system, designed for use aboard SOLAS vessels subject to ECDIS carriage mandates such as merchant cargo ships and tankers. Key Features Type approved ECDIS navigation system to meet IMO standards. Powerful Windows based PC with 24 or 27” wide screens Easy to…
SKU: 000-11142-001 Compatible with the complete line of Simrad NSS Sport, NSE Expert and NSO Offshore multifunction displays, the plug-and-play network solution makes it easier than ever to identify productive fishing areas with connectivity to the latest Simrad sonar technologies – including StructureScan® HD and CHIRP. Key Features Compact all-in-one sonar module delivers StructureScan® HD…
SKU: 000-12185-001 The S2009 combines CHIRP-enabled sonar with a 9-inch portrait display for maximum vertical detail, and intuitive keypad-driven operation for reliable control in all conditions. This dedicated echosounder integrates seamlessly with other Simrad displays, while offering charter captains and long-range sportfishing vessels the reliability of a self-contained sonar platform. Key Features Integrated CHIRP-enabled sounder…
SKU: 000-13260-001 The S5100 features three fully independent channels able to deliver high-resolution CHIRP sonar coverage across multiple depth ranges. Mix and match up to three transducers to provide the perfect coverage for any fishing style. Detect small or tightly grouped fish, identify thermoclines, and target specific depths with ease. Key Features Three fully independent…
SKU: 000-14215-001 The Simrad S3009 Navigational Echosounder meets the requirement for reliable and accurate bottom tracking and depth recording on a wide range of commercial vessels. Exceeding the latest performance standards for IMO compliance, the S3009 features modern controls for easy operation. The single-transducer S3009 system is cost effective, compact, and easy to install in…
SKU: 000-12187-001 The S2016 combines CHIRP-enabled sonar with a 16-inch widescreen display for an extensive on-screen history, and intuitive keypad-driven operation for reliable control in all conditions. This dedicated echosounder integrates seamlessly with other Simrad displays, while offering charter captains and long-range sportfishing vessels the reliability of a self-contained sonar platform. Key Features Integrated 16-inch…
SKU: 000-14217-001 The Simrad S3009 Navigational Echosounder meets the requirement for reliable and accurate bottom tracking and depth recording on a wide range of commercial vessels. Exceeding the latest performance standards for IMO compliance, the S3009 features modern controls for easy operation. This S3009 Expanded system includes the S5100 transceiver to enable separate bow and…
SKU: 000-12607-001 The Precision-9 Compass supplies accurate heading and rate-of-turn information, based on an internal array of solid-state sensors that measure motion and orientation on nine axes. An easily adjustable mounting bracket and NMEA 2000® connectivity enable simple installation aboard any boat, including an up-mast mounting option for steel-hulled vessels. Key Features Measures heading, rate…
SKU: 000-13895-001 The A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog colour display. Key Features Proven Simrad interface designed for commercial marine applications Large, heavy-duty rotary control dial for precision steering…
SKU: 000-10425-001 The SI80 is a 12/24 V DC signal interface module that provides up to four IEC 61162-1 (NMEA 0183) input and output channels and a SimNet power supply. Key Features 4-port NMEA 0183 signal interface unit for Simrad AP70 and AP80 autopilot systems.
SKU: 000-10191-001 Drive interface for analog or proportional control of rudder or thruster using analog voltage or low level current with possibility for frequency, voltage or current angle feedback, digital drive handshake and external mode input. Key Features Analogue drive interface for additional drives or thrusters Galvanically Isolated analogue output, 4-20mA
SKU: 000-10192-001 Drive interface for on/off or proportional control of rudder or thruster using galvanic isolated solenoids or high level current with possibility for frequency, voltage or current angle feedback, digital drive handshake and external mode input. Key Features Solenoid drive interface for additional drives or thrusters Galvanically Isolated Solenoid output, up to 10A
SKU: 000-10186-001 The brains behind the brawn, the AC70 is an essential component in your autopilot system. It contains the steering computer and electronics for the drive unit motor and clutch whilst also acting as an interface to other system components. Key Features Boats Over 40ft NMEA0183® Connectivity
SKU: 000-11479-001 The SG05 Pro Autopilot Interface provides autopilot control from Simrad AP70 and AP80 control heads to CANbus steering systems, and can be used as part of an IMO approved autopilot system. Key Features The ONLY IMO approved Autopilot interface for CANbus steering systems The Simrad SG05 Pro Autopilot Controller has 2 SimNet ports…
SKU: 000-14958-001 The AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant new display and modernised…
SKU: 000-10189-001 Customizable autopilot computer that can be configured with up to four drive boards depending on the installation requirements. Key Features Configurable for use with up to three drive interface boards CAN-bus supply 4 channel IEC 61162-1 (NMEA 0183) RX/TX (not mounted) Bulkhead mounted
SKU: 000-13899-001 A2004 Autopilot pack with A2004 controller, AC70 Autopilot computer and RF300 rudder feedback.
SKU: 000-10188-001 Drive computer for on/off or proportional control of rudder or thruster using galvanic isolated solenoids or high level current with possibility for frequency, voltage or current angle feedback, digital drive handshake and external mode input. Built in CAN-bus supply and 4 channel IEC 61162-1 (NMEA 0183) RX/TX. Key Features Galvanically Isolated solenoid output,…
SKU: 000-10187-001 Drive computer for analog or proportional control of rudder or thruster using analog voltage or low level current with possibility for frequency, voltage or current angle feedback, digital drive handshake and external mode input. Built in CAN-bus supply and 4 channel IEC 61162-1 (NMEA 0183) RX/TX. Key Features Galvanically Isolated analogue output, 4-20mA…
SKU: 000-13900-001 A2004 Autopilot pack with A2004 controller, AC70 Autopilot computer, RF300 rudder feedback and Precision 9 compass.
SKU: 000-15041-001 The AP70 Mk2 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. Replacing both the AP70 and AP80 as our IMO/SOLAS autopilot controller, the AP70 Mk2 retains much of the well-reputed platform of its predecessors, but with a brilliant new display and modernised…
SKU: 000-15039-001 AP70 MK2 Professional Autopilot basic pack. Kit contains AP70 MK2 controller, AC70 computer and RF300 rudder feedback. Key Features Wheelmarked for use on board SOLAS vessels (IMO, MED-B) Advanced configuration and tuning options to suit all ships Compatible with all common rudder/drive types Up to 6 rudders/thrusters integration Heavy-duty rudder feedback support Configurable…
SKU: 000-15042-001 AP70 MK2 Professional Autopilot controller. IMO Analog Pack. Includes AP70 MK2 controller and AC80A Computer Key Features Wheelmarked for use on board SOLAS vessels (IMO, MED-B) Advanced configuration and tuning options to suit all ships Compatible with all common rudder/drive types Up to 6 rudders/thrusters integration Heavy-duty rudder feedback support Configurable work modes…
SKU: 000-15040-001 AP70 MK2 Professional Autopilot solenoid pack. Kit contains AP70 MK2 controller, AC80S Computer and RF45X rudder feedback. Key Features Wheelmarked for use on board SOLAS vessels (IMO, MED-B) Advanced configuration and tuning options to suit all ships Compatible with all common rudder/drive types Up to 6 rudders/thrusters integration Heavy-duty rudder feedback support Configurable…
SKU: 000-11753-001 30 kW S-Band radar with enhanced near range target detection, pre-wired plug and play installation, and full integration with current Argus X-Band radar systems. Includes performance monitor, core unit, expanded keyboard, interswitch, and 100 target ARPA plus 300 AIS targets. Key Features 30 kW S-Band up-mast transceiver with 12-foot antenna Includes performance monitor,…
SKU: 000-13958-001 O2000 Radar remote controller for R2000, R3000 and R5000 PRO radars.
SKU: 000-12186-001 The R2009 is a dedicated control unit for Simrad radar systems and features an integrated 9-inch portrait display. An ideal safety and navigation accessory for offshore cruisers and sportfishing vessels, the R2009 offers versatile flush or bracket-mount installation options and intuitive keypad-based operation for reliable control in all conditions. Key Features Dedicated control…
SKU: 000-14537-001 A cost-effective way to increase situational awareness and collision avoidance, HALO20 is a compact dome radar with pulse compression technology that detects collision hazards and other targets in close and up to 24 nautical miles away. With its small footprint and low profile, HALO20 is the perfect radar solution for budget-conscious boaters with…
SKU: 000-14536-001 HALO20+ delivers an almost real-time view, with industry-leading 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 36 nautical miles—from a compact 20-inch dome antenna. Key Features 36 nm range from a compact…
SKU: 000-14535-001 HALO24 revolutionizes radar by offering an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna. Key Features 48 nm range…
SKU: 000-12188-001 The R3016 is a dedicated control unit for Simrad radar systems and features an integrated 16-inch widescreen display. An ideal safety and navigation accessory for offshore cruisers and sportfishing vessels, the R3016 offers versatile flush or bracket-mount installation options and intuitive keypad-based operation for reliable control in all conditions. Key Features Dedicated control…
SKU: 000-11477-001 Our HD Digital 10kW/64nm birdfinder radar features a high performance 4-foot open array scanner with compact pedestal design, ideal for smaller go-fast centre console sportfishing vessels and powerboats with limited top space. Experience unparalleled situational awareness, with exceptional detection of small or distant targets and minimised screen-clutter. With a proven history of oceangoing…
SKU: 000-11469-001 Halo™ radar delivers an unprecedented mix of long and short detection range, with precise target definition and minimal clutter. Quick start-up and maximum ocean-going reliability ensure you have coverage when you need it, while low-power pulsed transmissions mean Halo Radar is even safe to run in anchorages and marinas. Key Features True 48nm…
SKU: 000-11470-001 Halo™ radar delivers an unprecedented mix of long and short detection range, with precise target definition and minimal clutter. Quick start-up and maximum ocean-going reliability ensure you have coverage when you need it, while low-power pulsed transmissions mean Halo Radar is even safe to run in anchorages and marinas. Key Features True 64nm…
SKU: 000-11471-001 Halo™ radar delivers an unprecedented mix of long and short detection range, with precise target definition and minimal clutter. Quick start-up and maximum ocean-going reliability ensure you have coverage when you need it, while low-power pulsed transmissions mean Halo Radar is even safe to run in anchorages and marinas. Key Features True 72nm…
SKU: 000-12198-001 The R3016 radar control unit and Halo™ Pulse Compression radar system together form an ideal safety and navigation accessory for powerboats and sportfishing vessels. This system offers a target detection range of up to 48 nautical miles, and intuitive radar operation through a 16-inch widescreen display with keypad controls. Key Features 16-inch HD…
SKU: 000-12199-001 The R3016 radar control unit and Halo™ Pulse Compression radar system together form an ideal safety and navigation accessory for offshore powerboats and sportfishing vessels. This system offers a target detection range of up to 64 nautical miles, and intuitive radar operation through a 16-inch widescreen display with keypad controls. Key Features 16-inch…
SKU: 000-12200-001 The R3016 radar control unit and Halo™ Pulse Compression radar system together form an ideal safety and navigation accessory for offshore powerboats and sportfishing vessels. This system offers a target detection range of up to 72 nautical miles, and intuitive radar operation through a 16-inch widescreen display with keypad controls. Key Features 16-inch…
The COBRAS system is a machine-learning system that can be used as a conditional risk-assessment system or for the general monitoring of sensors and signals. The system has a variation of areas it can be used for, including condition monitoring alarms and trending, collision avoidance of vessels, fuel monitoring, and vessel-operation readiness.

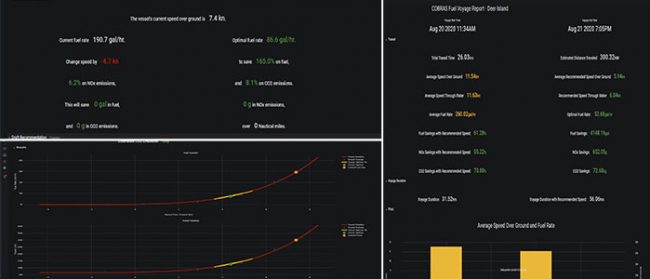

The COBRAS Fuel Advisory System helps to reduce a vessel’s fuel usage and emissions. The system calculates optimal speed, trim, and draft for a planned route. A live view/display is available on the bridge while the vessel is underway, and voyage reports are generated on actual usage and savings. The system can be retrofitted to…
The Condition Monitoring System is built on years of experience in maritime operations. The system is capable of continuously monitoring a variety of variables on board a vessel — vibration, ultrasonic sound and vibration, oil monitoring, engine-bearing monitoring (thermo voltage), engine-oil mist, engine splash oil, shaft power/torque, pressure, temperatures, flow and more. All systems can…

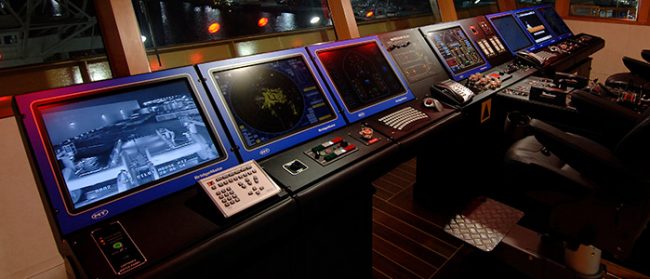

The Bridge Mate Integrated Bridge System (IBS) concept is based on segregated architecture comprising a dual redundant network, flexible console and monitor solutions, and extremely durable marine-approved computers without fans or hard disks. All applications, such as ARPA radar, ECDIS, conning, cameras, sensor control, and monitoring, are readily available on any multi-function workstation.
The C-Link 15 family of wireless radios is designed for medium-range applications, linking together a cluster of vessels, platforms and/or barges in a shared maritime or combined maritime/shore-side network constellation. The design of the network can be customized, from a simple wireless network with every wireless access point acting as a port on a network…

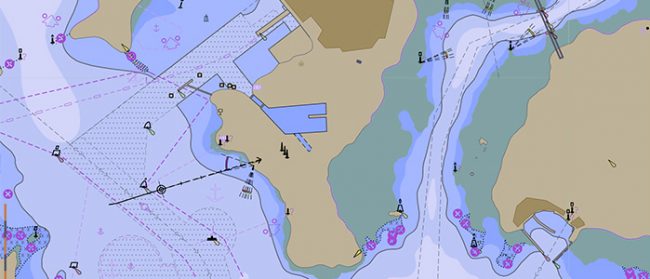

The Bridge Mate Electronic Chart Display and Information System (ECDIS) is an integrated information system that displays a vast array of navigation information utilizing electronic charts. Designed with the vessel operator in mind, ECDIS is a vital resource for efficient route planning and monitoring. Incorporating user-friendly functions, MT’s ECDIS provides precise vessel position data, optimizing…
Sharing the same software and hardware platforms, the Bridge Mate Autopilot can be fully integrated with all other Bridge Mate systems with no additional hardware required. Track-control-steering-approved when integrated with Marine Technologies’ conning display and ECDIS, the Bridge Mate Autopilot is Wheel Mark approved according to the latest requirements.
The Bridge Mate Thruster Control System uses three control computers and a redundant communication network for the main and backup control functions. The system can be interfaced with most types of thrusters, main engines and rudders, as well as fully integrated with other Bridge Mate systems, including autopilot, joystick or dynamic positioning.

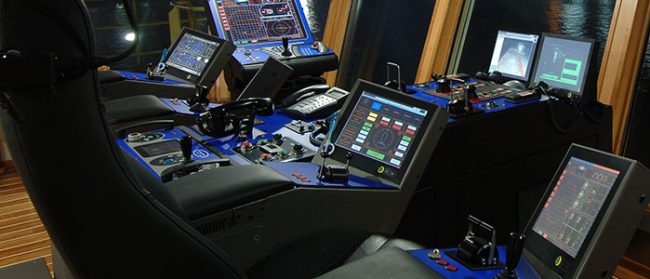

The Bridge Mate Dynamic Positioning concept consists of a number of DP and joystick systems designed to meet the IMO-MSC/Circ. 645 guidelines. Based on a distributed architecture that emphasizes both redundancy and segregation philosophies, the robust design is ideal for vessels that do not have service and system specialists on hand 24 hours a day,…
4G EZ-60 Radome Size: 78X80cm(31″x31.5″) Frequency: 1710-2700MHZ Antenna Gain: ≥6dBi@Hight Band ,≥10dBi@Low Band Antenna Type: 4G cluster omnidirectional antenna Beamwidth: H:360°(omni-Direction) ,E:≥12°±2 Polarization: ±45° Waterproof: IP65
3-Axis KM-X6 Dish Diameter: 64CM(25”) MinimumEIRP: 46dBW Reception Frequency: Ku-Band(10.7～12.75GHZ) Polarization: Linear or Circular Elevation Range: 0～90° Azimuth Range: 690° Tracking Rate: >90°/sec Initialization: < 20sec Ship’s motion: Roll±25°，Pitch±15°,Yaw±8°@6sec period RF Output: 2/4 Temp Range: -30°C～70°C Humidity Range: 0～95% Waterproof: IP56
3-Axis KM-X8 Dish Diameter: 85cm(33.5”) MinimumEIRP: 43dBW Reception Frequency: Ku-Band(10.7～12.75GHZ) Polarization: Linear or Circular Elevation Range: 0～90° Azimuth Range: 690° Tracking Rate: >90°/sec Initialization: < 20sec Ship’s motion: Roll±25°，Pitch±15°,Yaw±8°@6sec period RF Output: 2/4 Temp Range: -30°C～70°C Humidity Range: 0～95% Waterproof: IP56
2-Axis KM-V3L Dish Diameter: 40.4X15.3CM MinimumEIRP: 50dBW Reception Frequency: Ku-Band(10.7～12.75GHZ) Polarization: Linear or Circular Elevation Range: 0～90° Azimuth Range: 690° Tracking Rate: >90°/sec / Azimuth:60°/s Elevation:60°/s Polarization:60°/s Initialization: < 20sec Ship’s motion: Roll±25°，Pitch±15°,Yaw±8°@6sec period RF Output: 2/4 Temp Range: -30°C～70°C Humidity Range: 0～95% Waterproof: IP56
2-Axis KM-V7 Dish Diameter: 75cm(30″) MinimumEIRP: 44dBW Reception Frequency: Ku-band(10.7～12.75GHZ) Polarization: Linear or Circular Elevation Range: 0～90° Azimuth Range: 690° Tracking Rate: >90°/sec Initialization: < 20sec Ship’s motion: Roll±25°，Pitch±15°,Yaw±8°@6sec period RF Output: 2/4 Temp Range: -30°C～70°C Humidity Range: 0～95% Waterproof: IP56
2-Axis KM-V6 Dish Diameter: 60cm(24″) MinimumEIRP: 46dBW/47dBW Reception Frequency: Ku-Band(10.7～12.75GHZ) Polarization: Linear or Circular Elevation Range: 0～90° Azimuth Range: 690° Tracking Rate: >90°/sec Initialization: < 20sec Ship’s motion: Roll±25°，Pitch±15°,Yaw±8°@6sec period RF Output: 2/4 Temp Range: -30°C～70°C Humidity Range: 0～95% Waterproof: IP56
2-Axis KM-V4 Dish Diameter: 45cm(18″) MinimumEIRP: 48dBW Reception Frequency: Ku-Band(10.7～12.75GHZ) Polarization: Linear or Circular Elevation Range: 0～90° Azimuth Range: 690° Tracking Rate: >90°/sec / Azimuth:60°/s Elevation:60°/s Polarization:60°/s Initialization: < 20sec Ship’s motion: Roll±25°，Pitch±15°,Yaw±8°@6sec period RF Output: 2/4 Temp Range: -30°C～70°C Humidity Range: 0～95% Waterproof: IP56
Dish Diameter: 33cm(13″) MinimumEIRP: 50dBW Reception Frequency: Ku-band(10.7～12.75GHZ) Polarization: Linear or Circular Elevation Range: 0～90° Azimuth Range: 690° Tracking Rate: >90°/sec / Azimuth:60°/s Elevation:60°/s Polarization:60°/s Initialization: < 20sec Ship’s motion: Roll±25°/,Pitch±15°,Yaw±8°@6sec period RF Output: 2 Temp Range: -30°C～70°C Humidity Range: 0～95% Waterproof: IP56
2-Axis KM-P6A Dish Diameter: 64cm(25”) Frequency: TX:13.75～14.5GHz RX:10.7～12.75GHz Antenna Gain: TX:37.2dBi@14.25GHz RX:36dBi@12.5GHz G/T: 15.0dB/K(Clear Sky,30°Elevation) Ship’s motion: Roll:±20°@8~12sec,Pitch:|±10°|@6~12sec,Yaw:±8°@15~20sec Stabilization System: 2-Axis Skew Control: Automatic,0° to 240° Elevation Range: 0°~95° Azimuth Range: 0° to 690° Cross Level Range: BUC Power: 6W(3W/4W option) Waterproof: IP56
3-Axis KM-P8 Dish Diameter: 85cm(33.5”) Frequency: TX:13.75～14.5GHz RX:10.7～12.75GHz Antenna Gain: TX:39.1dBi@14.25GHz RX:37.9dBi@12.5GHz G/T: 16.5dB/K(Clear Sky,30°Elevation) Ship’s motion: Roll:±20°@8~12sec,Pitch:|±10°|@6~12sec,Yaw:±8°@15~20sec Stabilization System: 3-Axis Skew Control: Automatic,0° to 240° Elevation Range: -15°~120° Azimuth Range: Unlimited Cross Level Range:-30°～30° BUC Power: 8W(4W/6W/8W/16W option) Waterproof: IP56
3-Axis KM-P6 Dish Diameter: 64cm(25″) Frequency: TX:13.75～14.5GHz RX:10.7～12.75GHz Antenna Gain: TX:37.2dBi@14.25GHz RX:36dBi@12.5GHz G/T: 15dB/K@Clear Sky30°Elevation Ship’s motion: Roll:±20°@8~12sec,Pitch:|±10°|@6~12sec,Yaw:±8°@15~20sec Stabilization System: 3-Axis(AZ,EL,CL) + Auto skew Skew Control: Automatic,0° to 240° Elevation Range: -10°～115° Azimuth Range: 0° to 690°/Unlimited Cross Level Range: -30°～30° BUC Power: 6W(4W/8W option) Waterproof: IP56
Converter developed for Fuel level sensors with 10-180Ω calibration and NMEA2000 output in case. Available with level sensor cable of lenght L=1m. Input VDO level sensor (Cable gland) Output NMEA2000 (M12-5pin male connector) Dimensions 80 x 60mm Box high 30 mm Box material ABS Protection grade IP65
CAB20101 Extension cable 1 x M12 5 poles female + 1 x M12 5 poles male 1000 mm CAB20102 “T” connector 2 x M12 5 poles female + 1 x M12 5 poles male – CAB20103 “T” cable 2 x M12 5 poles female + 1 x M12 5 poles male 1000 mm CAB20104 Terminator…
Single CAN Bus J1939 engine NMEA2000 output converter. Read the main parameters from two ECU engines and convert them into NMEA2000 output to connect last generation plotters and/or integrated navigation systems. Input 1 x CAN Bus J1939 Output 1 x NMEA2000 Case material 93 x 93 mm Bolt circle 108 mm (2 x…
Double CAN Bus J1939 engine NMEA2000 output converter. Read the main parameters from two ECU engines and convert them into NMEA2000 output to connect last generation plotters and/or integrated navigation systems Dimensions 122 x 120 x 55 mm without connectors Inputs 2 x CAN Bus J1939 Outputs 1 x NMEA2000 Connection 3 x M12 5pin…
