SKU: 000-11749-001

Outboard Pilot is an HDS Autopilot add-on system designed for boats up to 30ft with a single outboard motor.

Product details

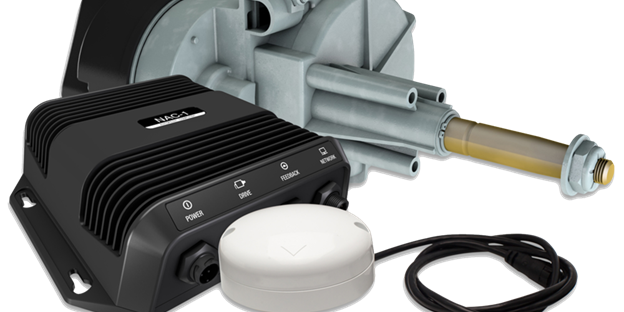

Outboard Pilot is an HDS Autopilot add-on system designed for boats up to 30ft with a single outboard motor. The system comes with everything you need to fit an Autopilot to a cable steer outboard motor, including Point-1 AP Heading/GPS Sensor, NAC-1 Autopilot computer, HELM-1 cable-steer drive unit, Standby-Auto button and Micro-C network components.

Key Features

  • Steer your outboard motor to a heading, waypoint, route or cursor, with control from your Multifunction Display
  • Lowrance SmartSteer™ interface provides control of both your cable-steer outboard motor, as well as the MotorGuide Xi5 Pinpoint electric-steer trolling motor.
  • “One-touch” route creation from saved trails.
  • Repeat your path with automatic turn patterns.
  • Recommended for single-outboard setups, on boats that are 30 feet and less, in length.
  • VRF (Virtual Rudder Feedback) – simplifies pilot installation — eliminating the need for a rudder position sensor.
  • Easy setup – straightforward guide steps you through first-time install.
  • Easy-to-install, plug-and-socket connection – with no complex terminal wiring.
  • Supported by Lowrance Advantage Service program
  • Lowrance Outboard Pilot Cable-Steer Pack replaces the manual helm-drive unit.
  • Morse 290, Morse 304411 and Teleflex SSC52 cable compatibility
  • Helm-1 is only compatible with the NAC-1.Helm-1 includes variable-voltage feedback interface
