SKU: 000-11644-001

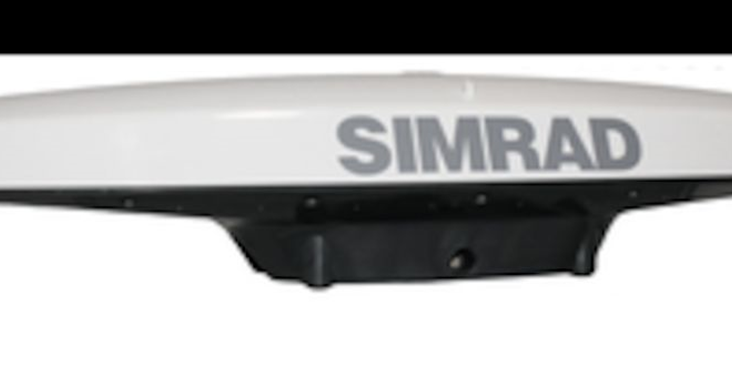

The Simrad MX575D D/GNSS (Global Navigation Satellite System) compass is designed to provide reliable heading, ROT and position information to Simrad Autopilots and the MX Series of navigation and AIS transponder systems. The MX575D compass has enhanced heading and position performance with a GPS and GLONASS sensor.

Key Features

  • IMO Type-Approved as a primary positioning AND heading device when used with SIMRAD CDU
  • Compatible with new MX610/MX612/GN70 CDU’s
  • Enhanced heading and positioning performance with GLONASS
  • Pitch, roll and heave as standard output
  • Heading accuracy < 0.5° RMS with GPS and GLONASS
  • Heading updates 1-20 Hz
  • DGPS Position accuracy (no SA) < 1.0m
  • GPS Position accuracy (no SA) < 3.0m
  • Fast start-up times
  • Integrated DGPS source including WAAS, EGNOS and Beacon
  • Provision for external RTCM SC104 corrections
  • More satellites tracking means better geometry
  • NMEA 2000 interface with NMEA 2000 adaptor
