The LXNAV E500 is a compact 5″ marine multifunction display and chartplotter with sunlight‑readable touchscreen, integrated GPS, and NMEA2000 & Wi‑Fi connectivity. It intelligently monitors engine, navigation and vessel data, automatically prioritizing and displaying critical information such as depth, speed, fuel level, battery status and alarms. With built‑in OpenSeaMap charts and optional Navionics support, the E500 enhances onboard awareness, safety, and control on every boat.
The LXNAV E500 is an intelligent marine instrument designed to deliver real‑time navigation and performance information in a compact 5″ touchscreen display. Built for both recreational and professional vessels, the E500 connects via NMEA2000 to sensors and systems on board, providing a comprehensive overview of engine data, navigational parameters, alarms and alerts.

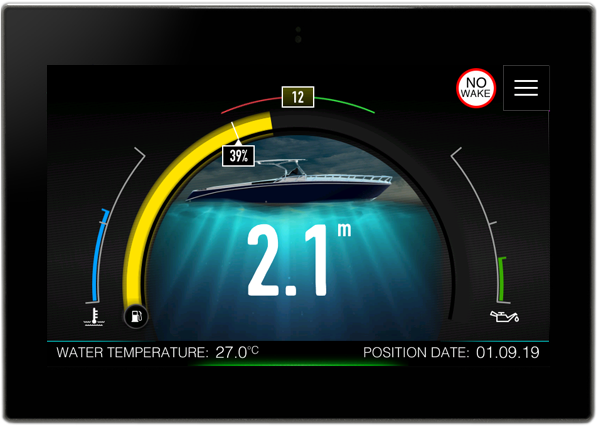

Featuring a bright 5″ sunlight‑readable display with advanced multi‑touch control, the E500 automatically switches screens based on priority — for example, showing depth information and issuing audible/visual alarms when entering shallow waters. This ensures you always see the most relevant data when it matters most.

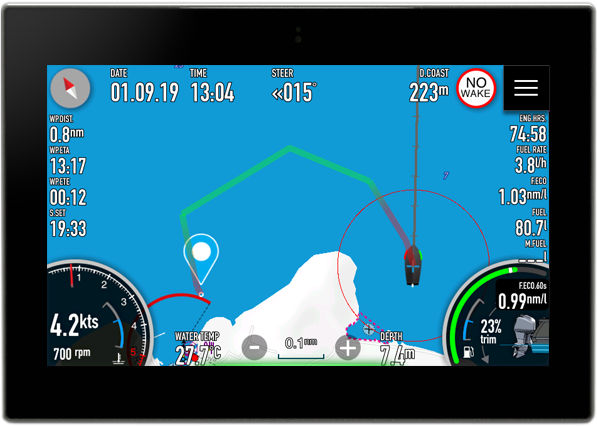

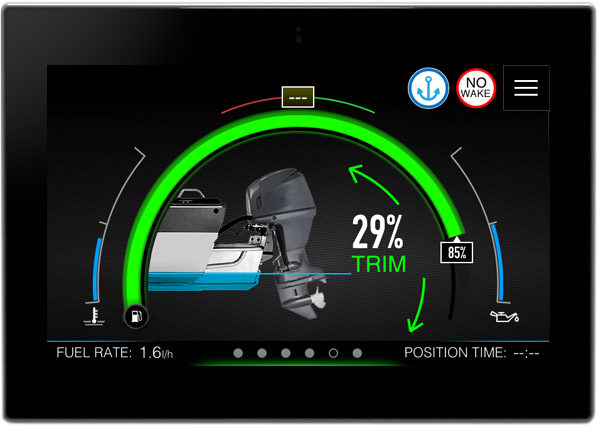

The unit includes an integrated 56‑channel uBlox GPS receiver for accurate position, speed and heading data. Navigation features include free OpenSeaMap charts and optional Navionics chart support for enhanced route planning and coastal navigation. Engine and vessel monitoring functions display key parameters such as RPM, oil pressure, fuel consumption and range, battery levels, trim tabs and rudder angle.
Smart features such as Anchor Watch, No Wake Zone warnings, and customizable screen layouts make the E500 a versatile and intuitive addition to any cockpit. Built‑in Wi‑Fi enables wireless connectivity for settings and data sharing, and the rugged IPX6 waterproof housing ensures reliable operation in harsh marine environments.
Sunlight‑readable 5″ TFT LCD touchscreen with high brightness (1200 + cd)
Integrated 56‑channel uBlox GPS receiver for navigation data
NMEA2000 connectivity for engine, sensor and transducer integration
Wi‑Fi connectivity for configuration, updates and network data

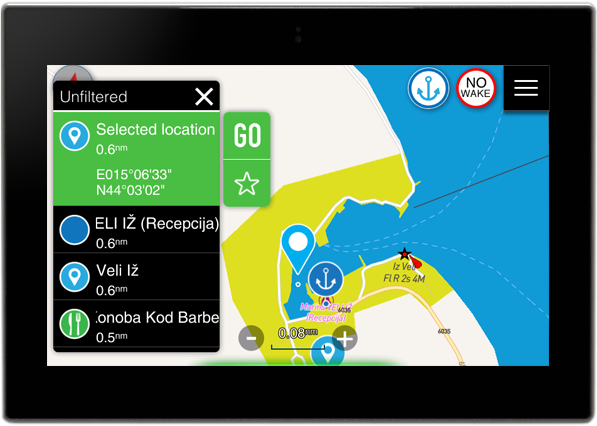

Built‑in OpenSeaMap charts (free) with optional Navionics support
Intelligent priority warnings and automatic screen switching
Engine monitoring: RPM, oil pressure, temperatures and twin engine support
Fuel data: consumption, range, flow, and tank level
Battery monitoring: state of charge, estimated time, charging status
Anchor Watch & alarms for anchor drift
No Wake Zone warnings near coastlines
Customization: custom layouts, multi‑language support
IPX6 waterproof rating for marine environments
Wide operating range: −25 °C to 60 °C
