Ensure your marine electronics network operates flawlessly with the CAN Terminator Male. This essential NMEA 2000 component stabilizes your network backbone, preventing communication errors and ensuring reliable data flow between all connected devices.

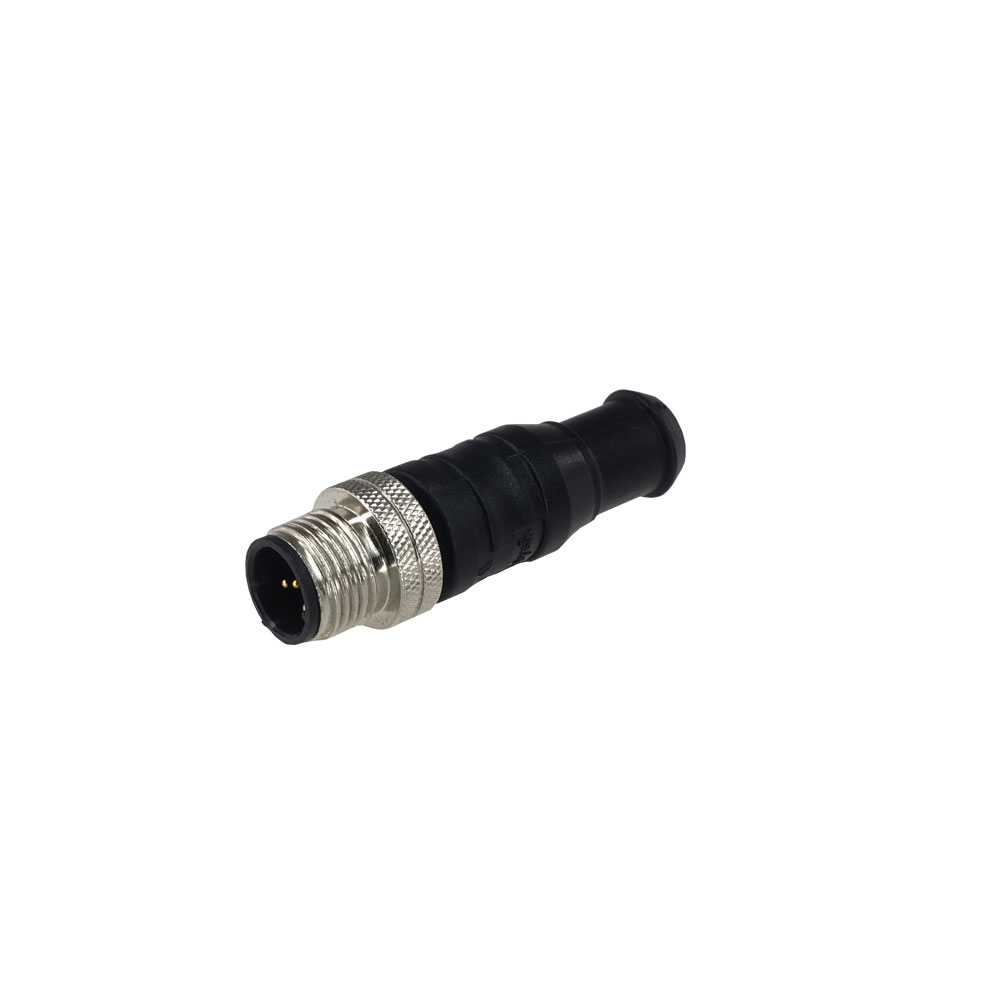

The LXNAV CAN Terminator Male is a key component used to properly terminate an NMEA 2000 CAN-bus backbone network. Installed at one end of the network backbone, this terminator provides the required electrical termination that ensures stable signal transmission and reliable communication between all connected devices.
In a standard NMEA 2000 network topology, the backbone must be terminated at both ends using two terminators—typically one male terminator and one female terminator. These termination resistors maintain the correct electrical impedance on the CAN bus, preventing signal reflections and ensuring consistent data communication between marine electronics such as chartplotters, sensors, gateways and instrument displays.
The CAN Terminator Male connects directly to the final T-connector at the end of the backbone and is designed to be fully compatible with standard NMEA 2000 Micro-C connectors. Its compact design allows quick installation in tight marine installations while maintaining network reliability and compliance with NMEA 2000 specifications.
By properly terminating the network backbone, the CAN Terminator Male helps maintain signal integrity, network stability and dependable data exchange throughout your vessel’s marine electronics system.
