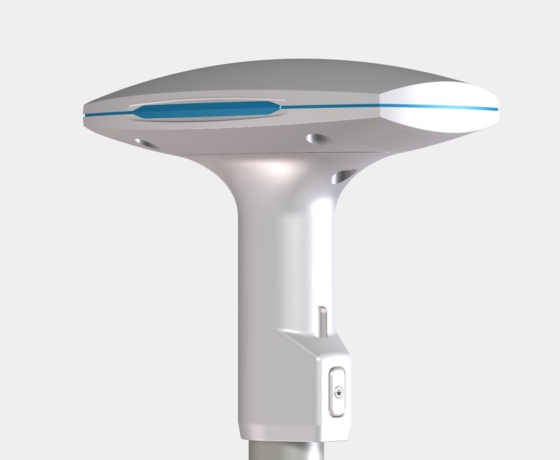

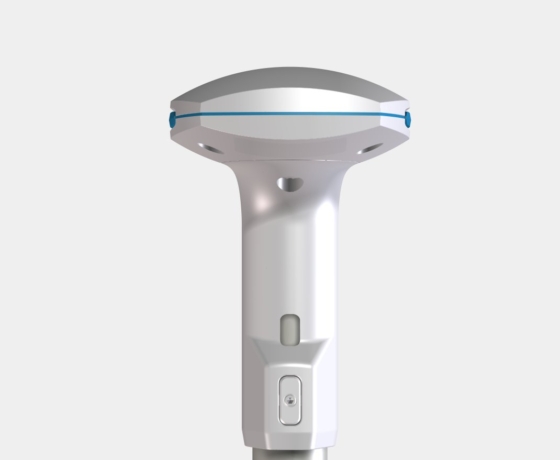

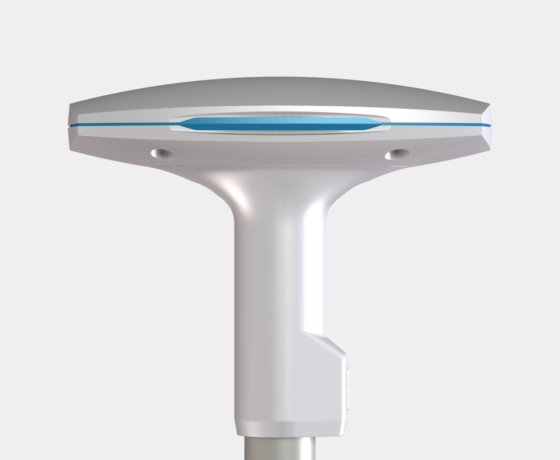

The LT-1000 Navigation Reference Unit (NRU) Electronic Compass is a high-performance maritime navigation sensor developed to deliver accurate heading, attitude, and positioning data for modern vessels. Combining an advanced electronic compass with a built-in GNSS/GPS receiver, the LT-1000 provides reliable navigation information for both professional maritime operations and leisure boating.
At the core of the LT-1000 are 12 precision sensors, including magnetometers, gyroscopes, accelerometers, a barometer, a thermometer, and a GNSS receiver. Using advanced sensor-fusion technology and Kalman filtering, the device processes data from multiple sensors to deliver highly accurate navigation outputs in real time.
The unit provides essential navigation information such as true heading, magnetic heading, roll, pitch, deviation, variation, position, UTC time and date, ground speed, course over ground, air pressure, and temperature. This comprehensive data output ensures stable and precise information for onboard equipment including autopilots, navigation displays, and chart plotters.
The integrated 72-channel multi-constellation GNSS receiver supports GPS, GLONASS, and BeiDou satellite systems, as well as SBAS augmentation services such as EGNOS, WAAS, and MSAS for improved positioning accuracy.
For seamless system integration, the LT-1000 supports simultaneous NMEA 0183 and NMEA 2000 communication, allowing compatibility with a wide range of marine electronics. The system also includes configurable NMEA sentences and adjustable data rates to ensure flexible installation across different vessel systems.
Designed specifically for harsh marine environments, the LT-1000 operates reliably in temperatures ranging from −40°C to +55°C, while maintaining extremely low power consumption of less than 1 watt. Its compact and lightweight design allows easy installation using a pole or roof mount, making it an ideal solution for reliable maritime navigation.
Navigation Reference Unit with 12 precision sensors
Built-in 72-channel GNSS receiver (GPS / GLONASS / BeiDou)
Supports SBAS correction (EGNOS, WAAS, MSAS)
Outputs true heading, magnetic heading, roll, pitch and deviation
Provides position, course over ground, ground speed and satellite information
Additional environmental data: air pressure and temperature
Sensor-fusion technology with Kalman filtering for high accuracy
Simultaneous NMEA 0183 and NMEA 2000 output
Configurable NMEA sentences and data rates
Factory calibrated and fully tested before shipment
Low power consumption (<1W)
Operating temperature −40°C to +55°C
Compact marine-grade design with worldwide maritime certification
