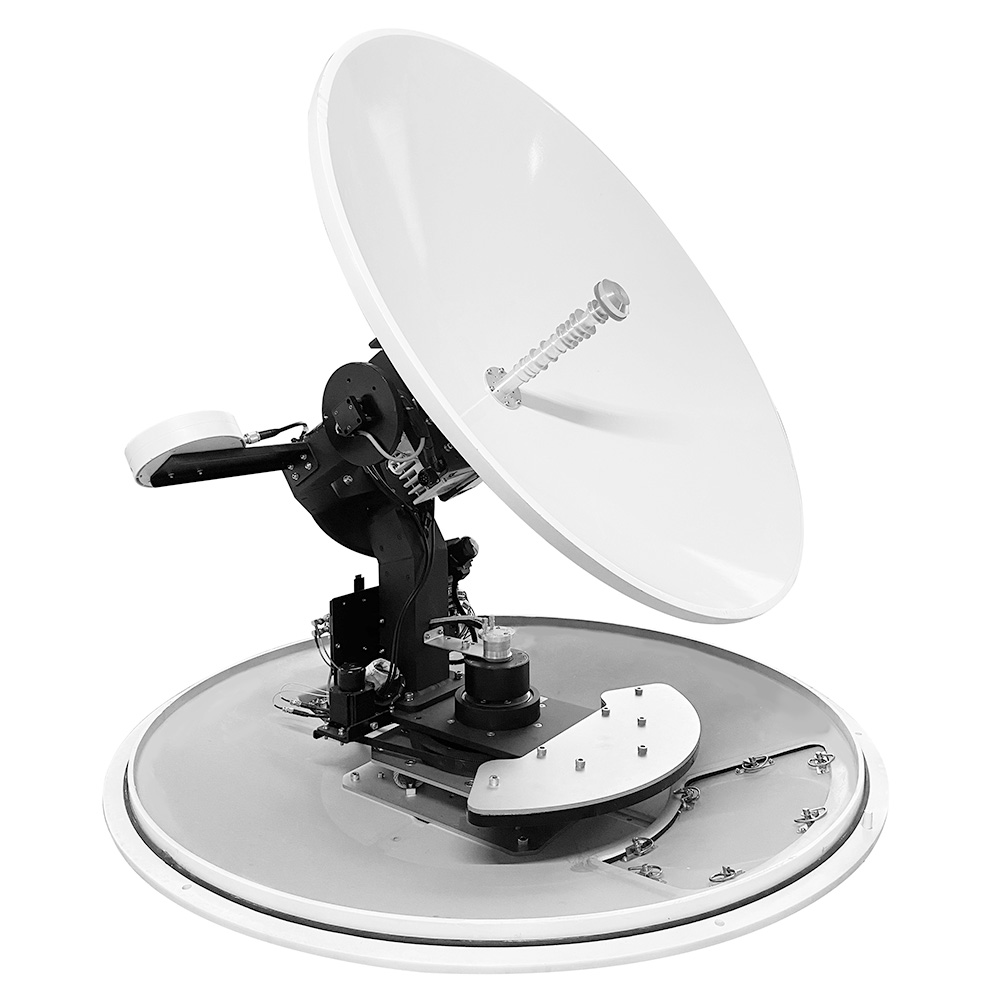

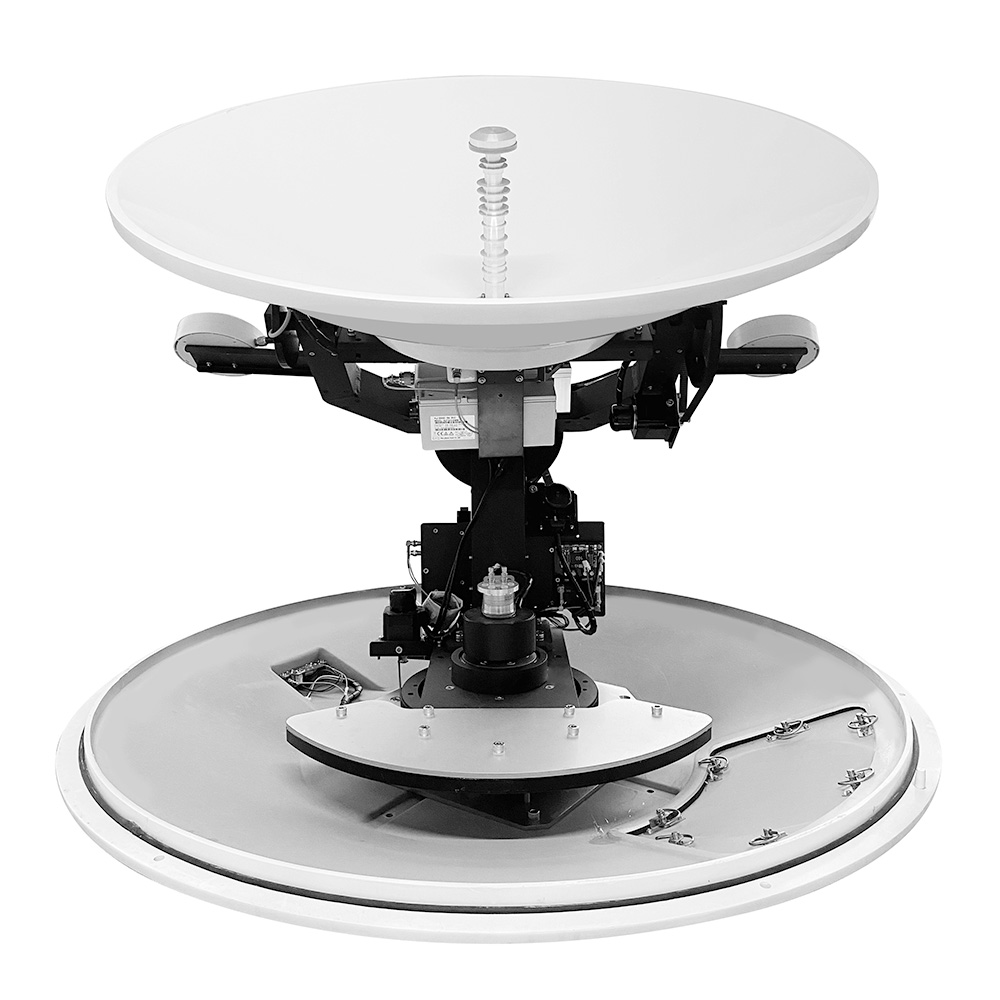

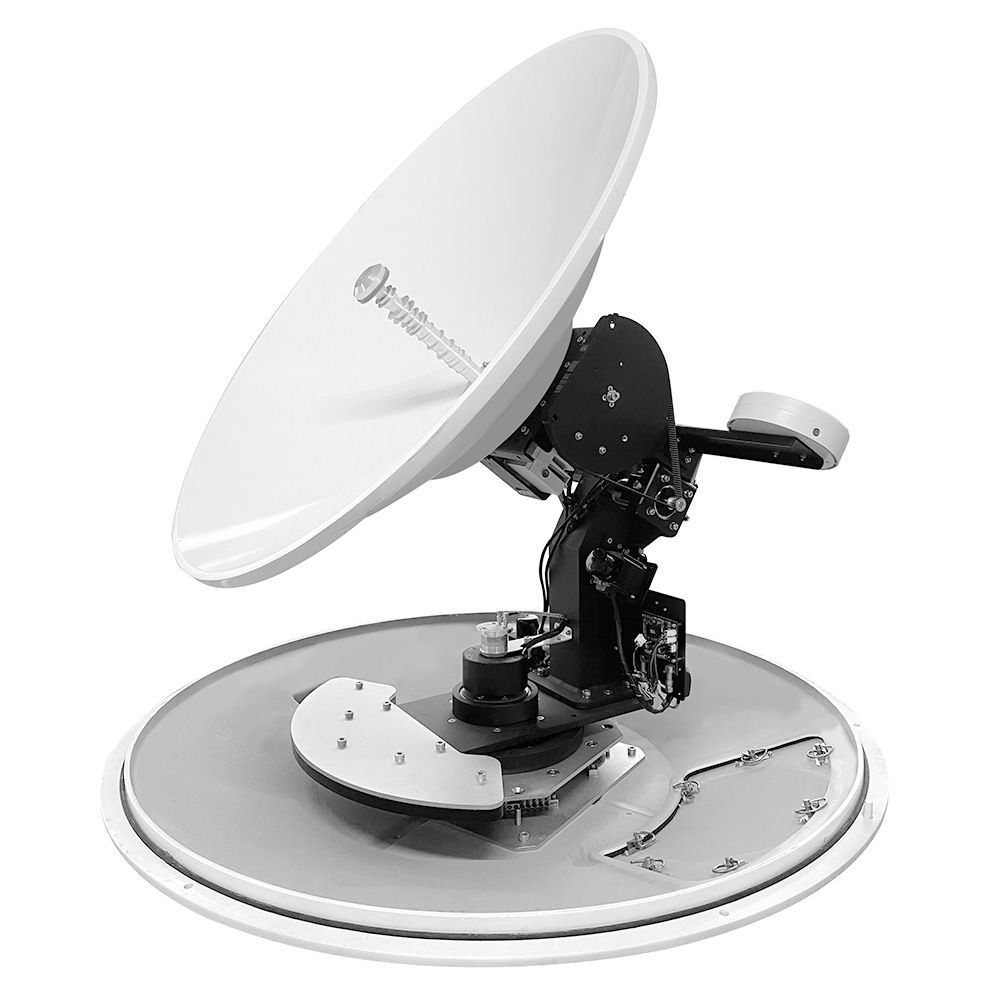

The Ultimate Ku‑Band 3‑Axis Stabilized & 4‑Axis Tracking VSAT – 85 cm (KM‑P8+E) sets the benchmark for maritime satellite communication with its advanced stabilization and tracking capabilities. Designed for vessels requiring the highest levels of performance at sea, the system combines 3‑axis stabilization with automatic 4‑axis tracking and unlimited azimuth rotation to ensure optimal satellite lock in dynamic marine environments.

This premium model is equipped with a built‑in dual GPS gyro that rapidly acquires the target satellite and maintains precise pointing even during partial signal blockage or rapid vessel motion. The durable honeycomb FRP radome minimizes signal loss (< 0.2 dB), making it ideal for high‑reliability Ku‑band broadband and communication services.

With intuitive web‑based control and monitoring, remote configuration and troubleshooting are simple, enhancing operational efficiency on board. Suitable for demanding maritime applications, the KM‑P8+E supports a wide range of VSAT services and seamlessly integrates with standard satellite communication systems.

Key Features

• 85 cm Ku‑band reflector with advanced 3‑axis stabilization & 4‑axis automatic tracking for continuous satellite alignment at sea

• Unlimited azimuth range enables unrestricted antenna rotation

• Built‑in dual GPS gyro for fast satellite acquisition and stable pointing

• Honeycomb FRP radome with extremely low signal loss (< 0.2 dB)

• Web interface support for remote control, commissioning, and troubleshooting

• DC motor with brake for enhanced pointing stability

• S2/ACM demodulator support for flexible signal decoding

• High performance supporting full Ku‑band satellite services (Rx: 10.70–12.75 GHz, Tx: 13.75–14.50 GHz)
