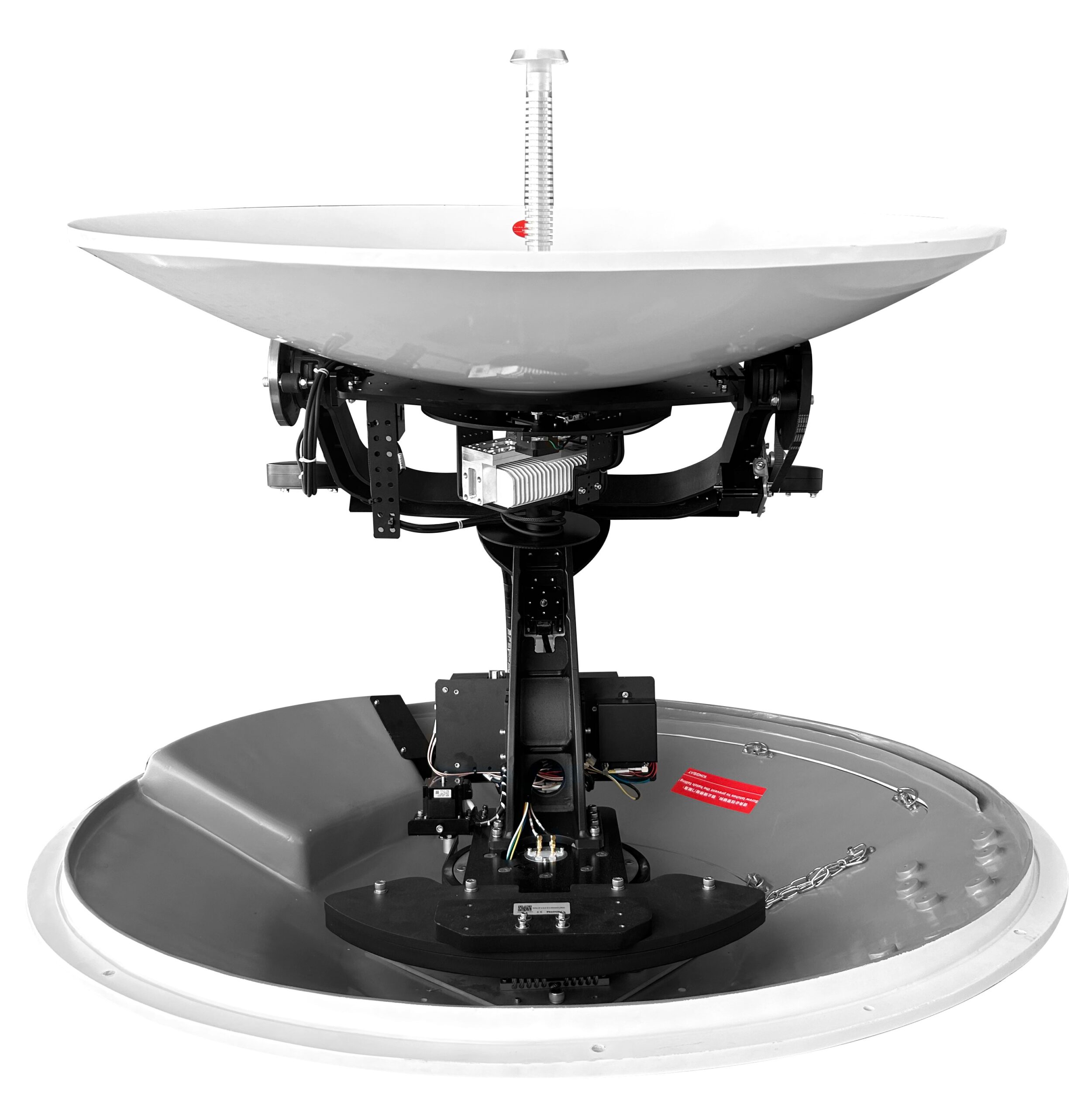

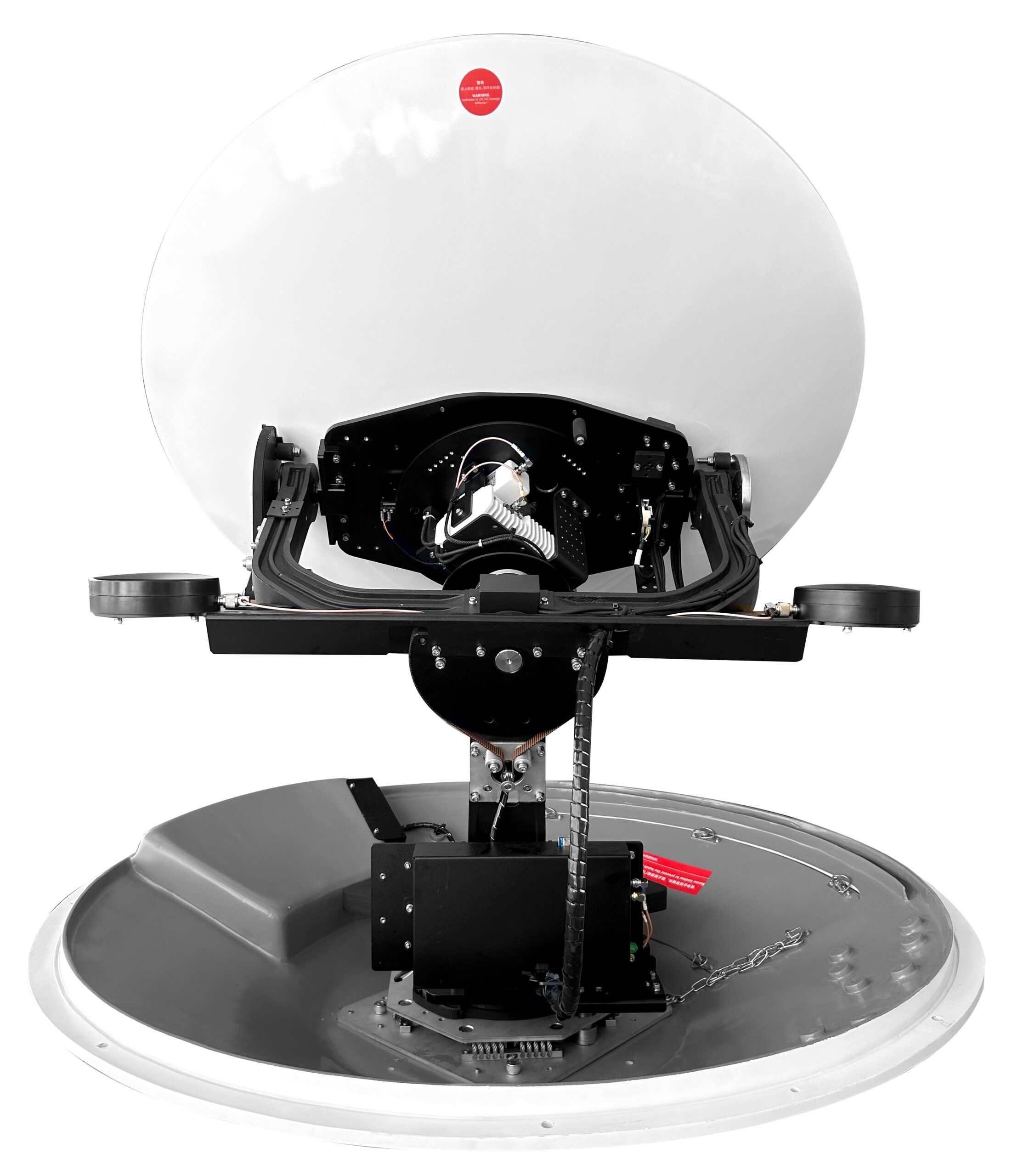

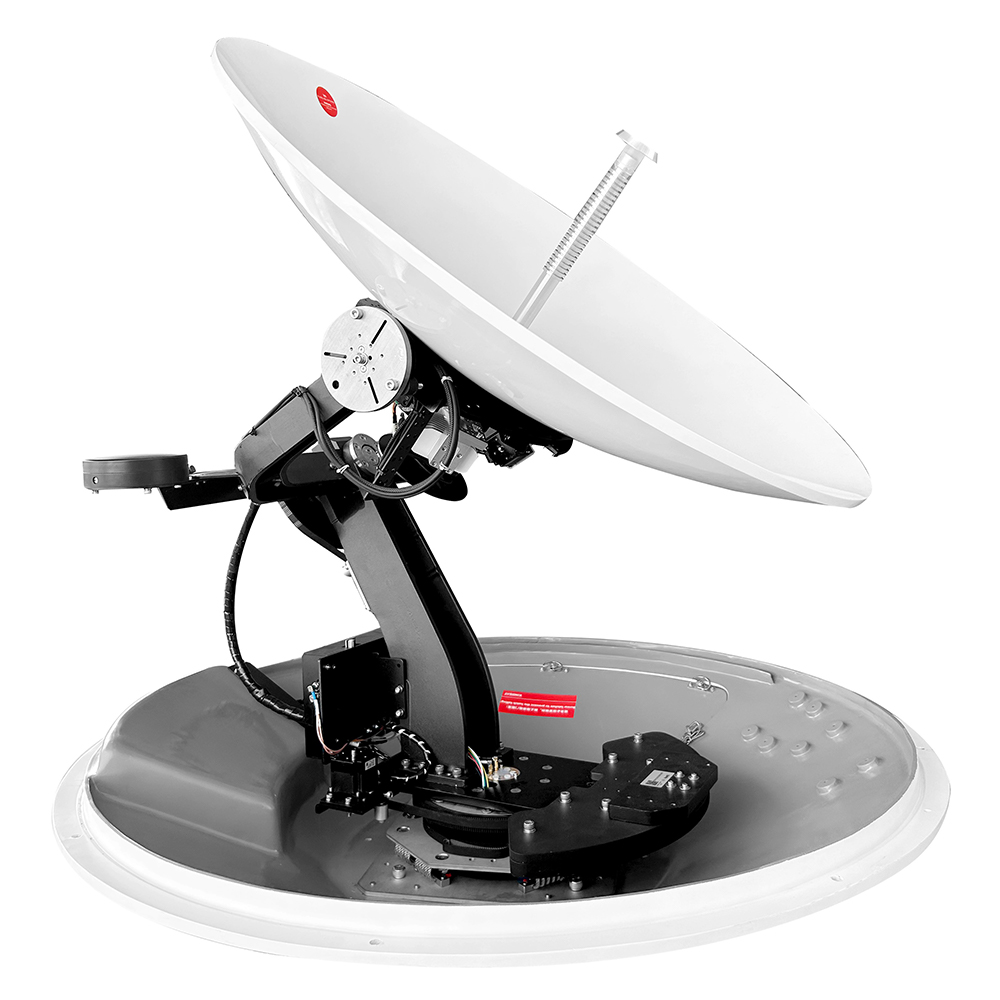

The Ultimate Ku‑Band 3‑Axis Stabilized & 4‑Axis Tracking VSAT – 100 cm (KM‑P10E) is a high‑end maritime satellite communication antenna designed for demanding offshore applications. Built around a large 100 cm Ku‑band dish, this VSAT combines advanced 3‑axis stabilization with automatic 4‑axis tracking and an unlimited azimuth range to maintain consistent satellite alignment even in rough sea conditions.
With a built‑in dual GPS gyro, the KM‑P10E rapidly acquires target satellites and keeps precise pointing during vessel motion or temporary signal blockages. Its web interface control allows easy remote setup, commissioning, and troubleshooting, ideal for fleet operations. Protected by a rugged ASA radome (loss < 0.8 dB) and powered by a strong DC motor with brake, this antenna delivers stable, reliable Ku‑band broadband and VSAT services in challenging maritime environments.
Designed for commercial, research, or remote connectivity‑critical vessels, the KM‑P10E integrates seamlessly with industry‑standard satellite modems and delivers high performance for internet, voice, and data applications at sea.
100 cm Ku‑band reflector with 3‑axis stabilization & 4‑axis automatic tracking for robust maritime satellite alignment.
Unlimited azimuth range enables continuous rotation with no motion limits.
Built‑in dual GPS gyro for fast satellite acquisition and pointing precision.
Web‑based interface for remote configuration, monitoring, and troubleshooting.
DC motor with brake for enhanced stability and control.
Durable ASA radome with low signal loss (< 0.8 dB) for harsh marine environments.
Wide Ku‑band frequency support (Rx: 10.70–12.75 GHz, Tx: 13.75–14.50 GHz).
Operating temperature range from −25 °C to 55 °C with IP56 waterproof protection.
