AC ANTENNAS KUM603-1 MF/HF ANTENNA

AC ANTENNAS KUM603-1 MF/HF ANTENNA

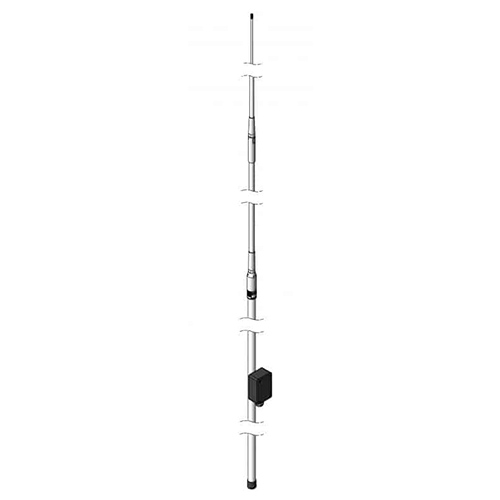

This antenna is a 3-section omnidirectional side-fed antenna for automatic tuned HF/SSB systems. The high quality makes this antenna perfect for both leisure and commercial vessels. The antenna is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of copper. The antenna is manufactured using crimping technology giving the antenna a 4-5 times stronger build-up. Installation by means of the N095F-SET. This antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land

Technical Information

Part No: 260301-P

Product Name: KUM603-1

Product Group: HF/SSB

Frequency Range [MHz]: 1.4-30

Connector: Sidefed CoaxTerminal

Max. Input Power [Watt]: 750 PEP

MECHANICAL SPECIFICATIONS

Sections: 3

Length [m/ft.]: 6.00/19.70

Weight [kg/lbs.]: 2.50/5.60

Thread: For mast mount / N095F-SET, order separately
