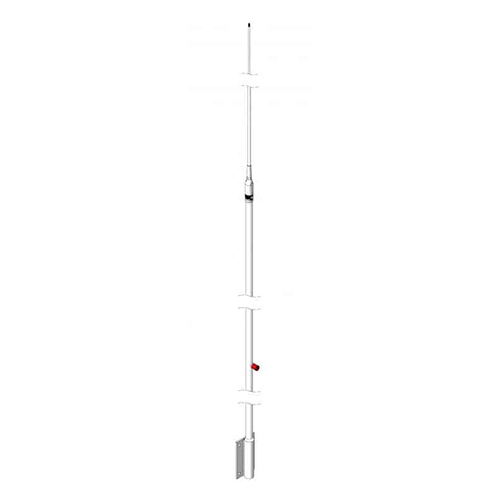

AC ANTENNAS KUM480 MWMe MF/HF ANTENNA

AC ANTENNAS KUM480 MWMe MF/HF ANTENNA

This antenna is a 2-section omnidirectional side-fed antenna for automatic tuned HF/SSB systems. The high quality makes this antenna perfect for both leisure and commercial vessels. The antenna is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of copper. The antenna is manufactured using crimping technology giving the antenna a 4-5 times stronger build-up. Installation by means of integrated Mast and Wall Mount. This antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.

Technical Information

ELECTRICAL SPECIFICATIONS

Part No: 248020-P

Product Name: KUM480MWMe

Product Group: HF/SSB

Frequency Range [MHz]: 1.4-30

Connector: Sidefed Bolt

Max. Input Power [Watt]: 500 PEP

MECHANICAL SPECIFICATIONS

Sections: 2

Length [m/ft.]: 4.80/15.75

Weight [kg/lbs.]: 4.35/9.60

Thread
