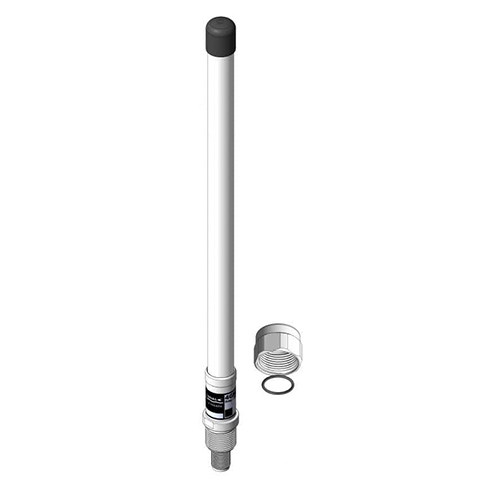

4GMultiband is an omnidirectional multiband antenna covering the cellular phone network bands simultaneously with data transmission, thus improving the communication performance for e.g. 3G, 4G, CDMA, UMTS, DECT, WLAN, GSM850/900/1800/1900, Bluetooth and EDGE. The swivel nut N239F is included for installation on ISO 228/1-G1 mounts. Radiating elements are made of brass. The antenna is manufactured using crimping technology giving the antenna a 4-5 times stronger build-up. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on Sea and Land.
Part No: 400006-T
Product Name: 4GMultiband
Product Group: Cellular
Frequency Range [MHz]: A: 790-806 B: 806-960 C: 1710-2500 D: 2500-2690
Connector: N-Female
Max. Input Power [Watt]: 150
Sections: 1
Length [m/ft.]: 0.44/1.40
Weight [kg/lbs.]: 0.30/0.62
Thread: 1″ 14TPI male / ISO 228/1-G1 female
